1.Wide operating temperature range
2.Wide compensation temperature range
3.Compact assembly size
4.Double redundancy output

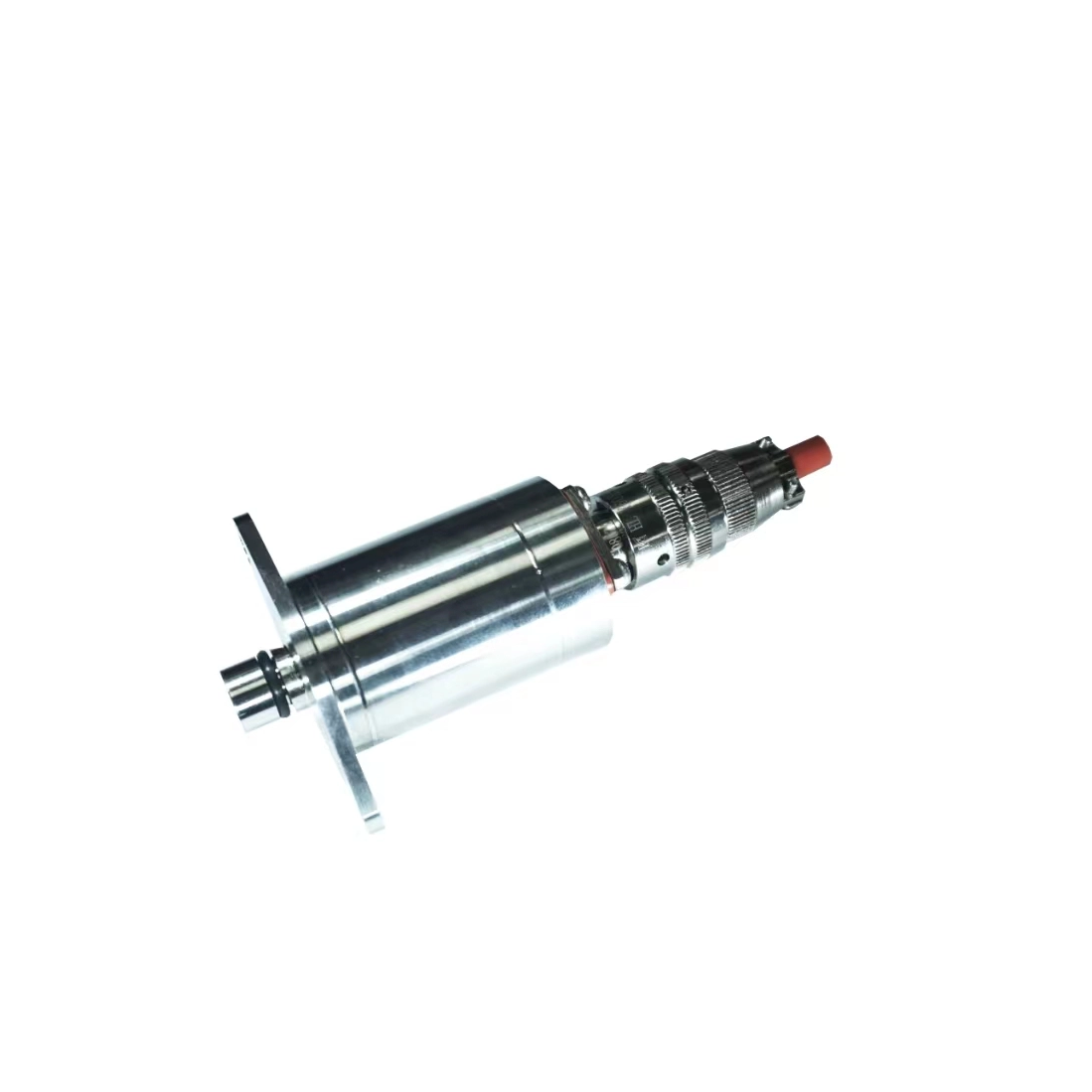

SG-M28
SG-M28 Double redundancy pressure sensor is a double redundancy wide temperature analog voltage output pressure sensor. The product is small in shape and assembly size, has good environmental adaptability, and has the characteristics of high reliability and high maintainability. The product adopts two independent pressure output design to improve the reliability of the system. The product is widely used in gas turbine, marine engine and other pressure measurement application scenarios.
SG-M28 Series Double redundancy pressure sensor features:
●Wide operating temperature range
●Wide compensation temperature range
●Compact assembly size
●Double redundancy output
Pressure range | 0~100kPa, Max 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -55℃~125℃ | Operating current | ≤20mA（@12V DC） |
Supply voltage | 6V~20V DC | Output | 0.5V~4.5VDC |
Comprehensive accuracy | ±0.5%F.S. | Long-term stability | ±0.1%F.S./year |
Pressure interface | M12×1 external thread | ||
Overall dimension
SG-M28 Double redundancy pressure sensor is a double redundancy wide temperature analog voltage output pressure sensor. The product is small in shape and assembly size, has good environmental adaptability, and has the characteristics of high reliability and high maintainability. The product adopts two independent pressure output design to improve the reliability of the system. The product is widely used in gas turbine, marine engine and other pressure measurement application scenarios.
SG-M28 Series Double redundancy pressure sensor features:
●Wide operating temperature range
●Wide compensation temperature range
●Compact assembly size
●Double redundancy output
Pressure range | 0~100kPa, Max 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -55℃~125℃ | Operating current | ≤20mA（@12V DC） |
Supply voltage | 6V~20V DC | Output | 0.5V~4.5VDC |
Comprehensive accuracy | ±0.5%F.S. | Long-term stability | ±0.1%F.S./year |
Pressure interface | M12×1 external thread | ||
Overall dimension
