1.Miniaturization
2.High reliability
3.Atmospheric pressure measurement
4.Low temperature drift

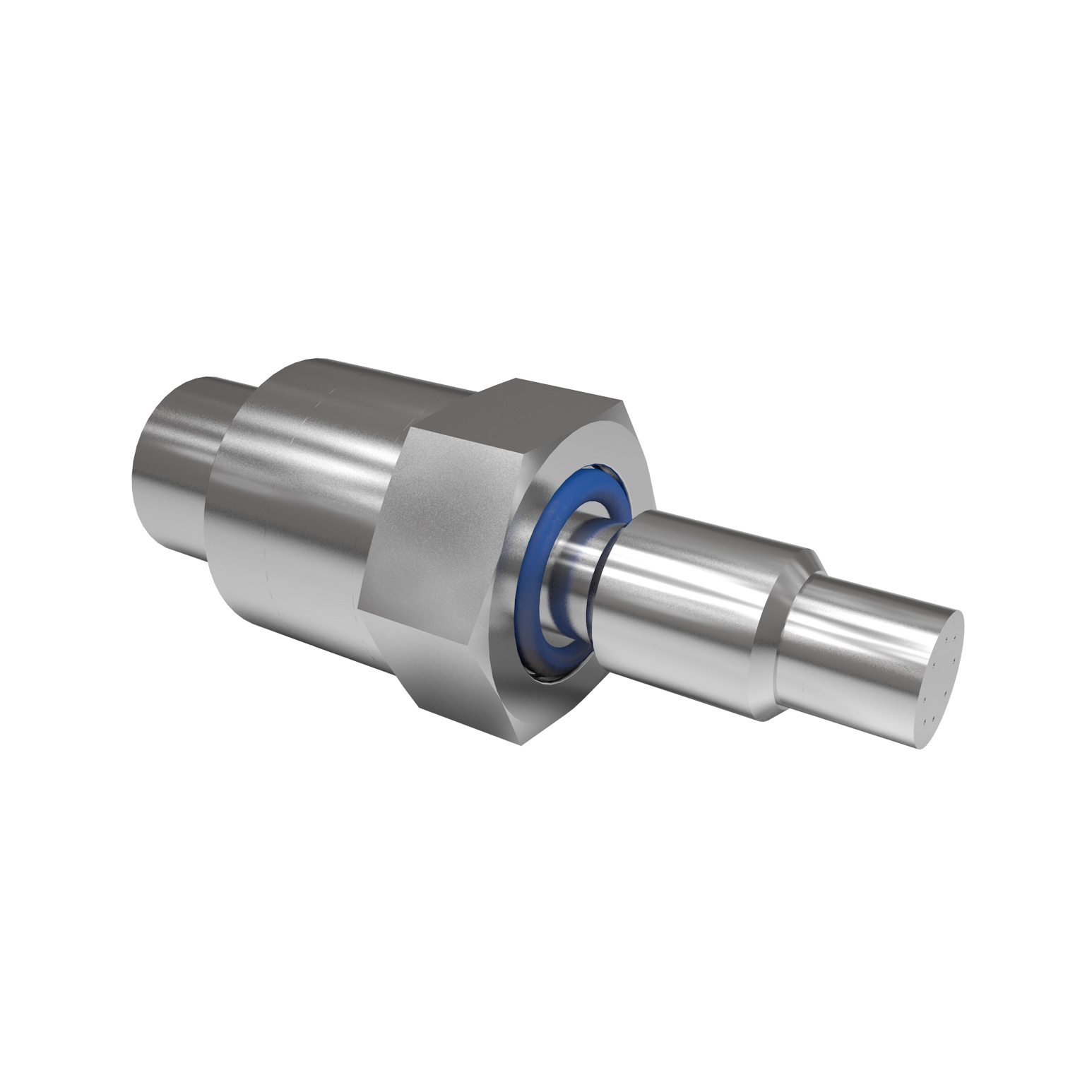

SG-R24
The SG-R24-series miniature pressure sensors are internally integrated with SOI piezoresistive pressure chips, which are used for gas pressure testing. The integrated pressure signals go through processes such as temperature compensation and output conditioning, and linearly output DC voltage signals to reflect the current pressure of the measured gas.
Miniaturization
High reliability
Atmospheric pressure measurement
Low temperature drift
SG-R24 Series Small pressure sensor specifications:
Pressure range | 0~100kPa/230kPa | Type of pressure | Absolute pressure |
Measuring medium | Dry, non-corrosive gas | ||
Overload pressure | 2×F.S | Breaking pressure | 3×F.S |
Operating temperature | -55℃~85℃ | ||
Supply voltage | 5V DC | Output | 45mV |
Full temperature full range error | ±2.5%F.S. | Pressure interface | M5×0.8 External thread |
Overall dimension:
The SG-R24-series miniature pressure sensors are internally integrated with SOI piezoresistive pressure chips, which are used for gas pressure testing. The integrated pressure signals go through processes such as temperature compensation and output conditioning, and linearly output DC voltage signals to reflect the current pressure of the measured gas.
Miniaturization
High reliability
Atmospheric pressure measurement
Low temperature drift
SG-R24 Series Small pressure sensor specifications:
Pressure range | 0~100kPa/230kPa | Type of pressure | Absolute pressure |
Measuring medium | Dry, non-corrosive gas | ||
Overload pressure | 2×F.S | Breaking pressure | 3×F.S |
Operating temperature | -55℃~85℃ | ||
Supply voltage | 5V DC | Output | 45mV |
Full temperature full range error | ±2.5%F.S. | Pressure interface | M5×0.8 External thread |
Overall dimension:
