SG-P45

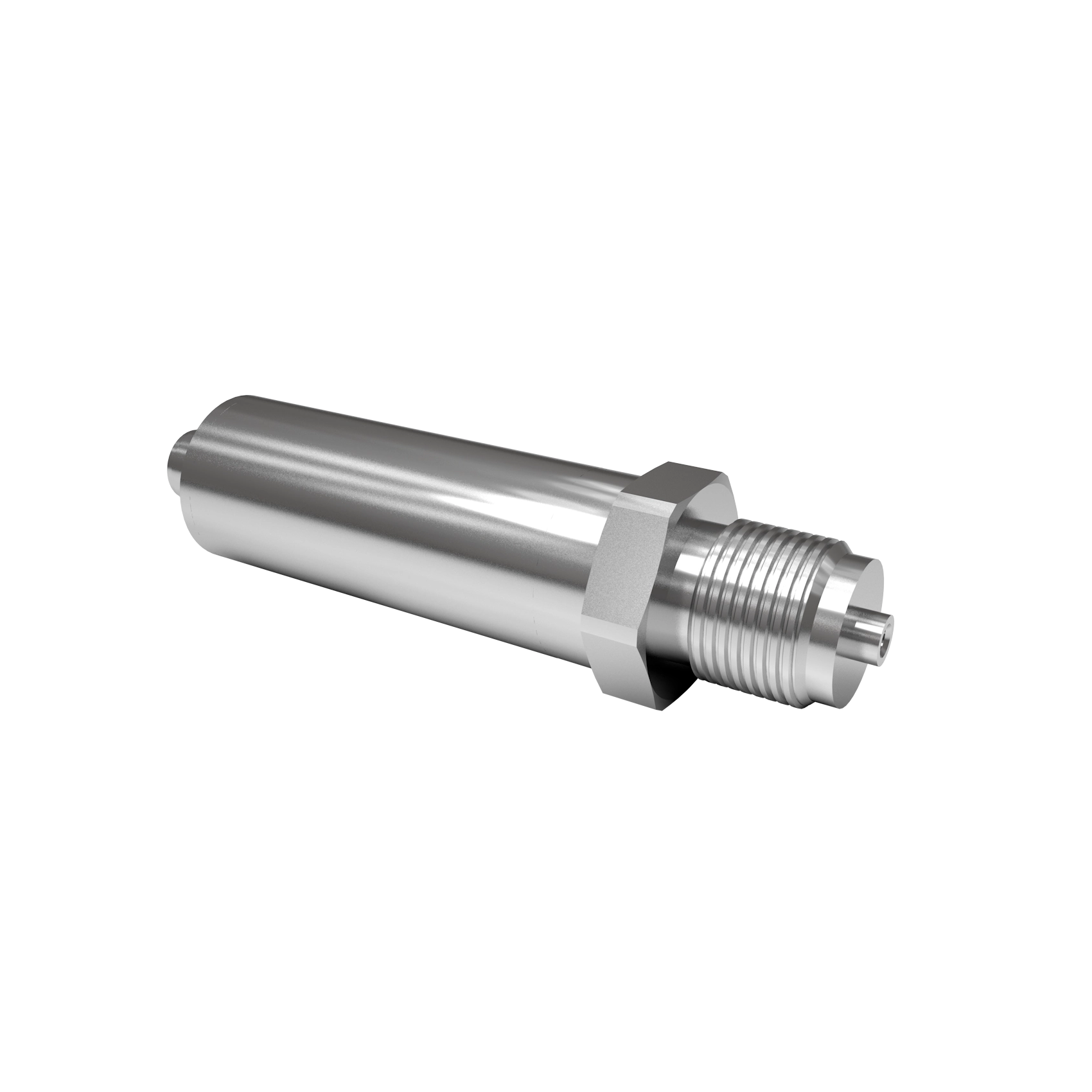

SG-P45 pressure sensor is a high-precision pressure measurement product, with an accuracy index of up to ± 0.1% FS. It converts pressure signals into standard signals through signal conditioning and digital processing, and can be configured to output them to external devices in different ways. The product uses isolated sensors that can be used for measuring various gases and liquids. The product can provide various electrical connectors and pressure interfaces, with strong adaptability, and can be widely used in various high-precision applications. The low power consumption also reduces the power supply requirements.
SG-P45 Series High Precision Pressure Sensor features:
Full temperature accuracy ± 0.1% F.S
Fast measuring
Output signal can choose analog signal, RS-485, CAN open
SG-P45 Series High Precision Pressure Sensor specifications:
Pressure range | 0~700kPa | Type of pressure | Absolute pressure |
Linearity | ±0.05%F.S. | Long term stability | ±0.1%F.S./Year |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 1.5×F.S. | Breaking pressure | 4XF.S |
Operating temperature | -20℃~85℃ | Storage Temp | 40℃~85℃ |
Power Supply | 9V~30V DC | Output | 0~5V DC |
Pressure interface | M20×1.5 external thread (Configurable,please inquire) | ||
Absolute accuracy | ±0.1%F.S. (10℃~60℃) | Insulation resistance | 100MQ@50VDC |
Overall dimension:
