SG-A23

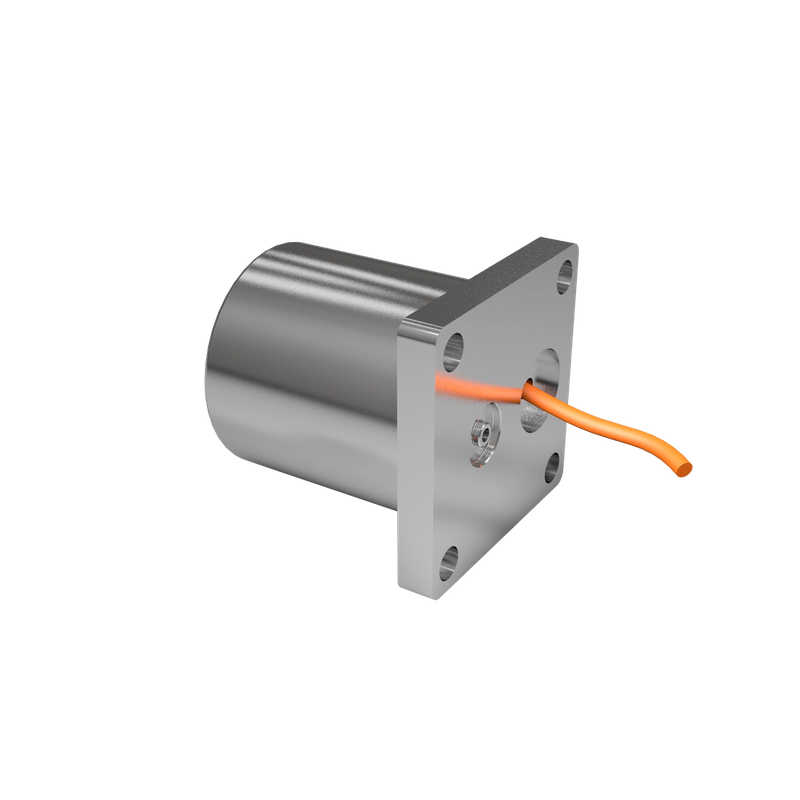

SG-A23 series excess pressure sensor is used for hydraulic pressure measurement.The pressure chip based on SOI technology is used to convert the measured pressure into an electrical signal, which is then converted into a standard current output after simulating a temperature compensation and amplification circuit. It has the characteristics of wide temperature range and high accuracy.The electrical connection of the product is in the same direction as the pressure interface, and it is installed and fixed with flanges on site, with small and compact structure.The product has high reliability, using isolated sensor, all-metal package design, long working life, through series of environment tests, meet the requirement of aviation standards, can be compatible with a variety of media and has the ability to maintain stable work for a long time under the harsh environment.
SG-A23 Redundant pressure sensor features：
●High reliability
●Wide operating temperature range
●Good media compatibility
●Current output
SG-A23 Redundant pressure sensor specifications:
Pressure range | 0~28MPa | Type of pressure | Absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 32MPa | Breaking pressure | 52MPa |
Power supply | 14V~32V DC | Output | 4mA~20mA |
Long-term stability | ±0.1%F.S./year | ||
Full temperature full range error | ±2.0%F.S. | Insulation resistance | 100MΩ@50VDC |
Operating temperature range | -55℃~125℃ | Storage temperature range | -55℃~125℃ |
Overall dimension:
