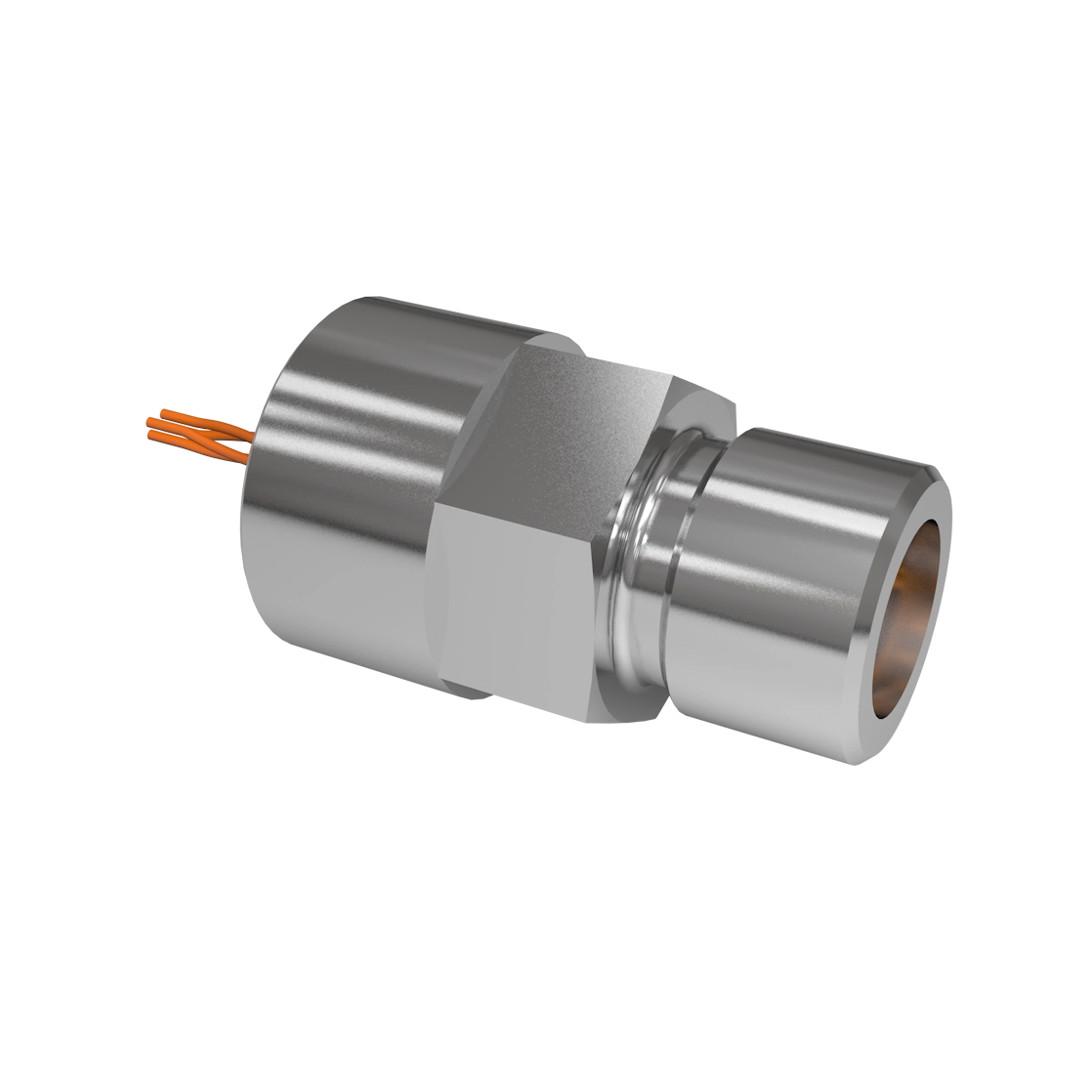

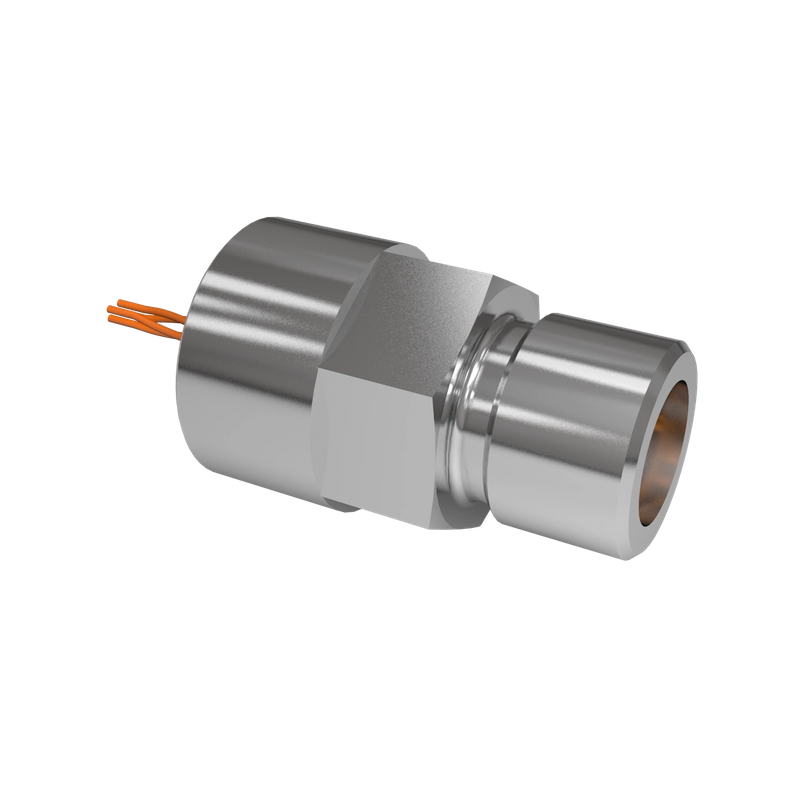

SGQV
The SGQV-series gas pressure sensors are mainly used to measure the pressure of dry and non-corrosive gases. They convert the pressure into standard DC voltage signals to reflect the pressure of the current measuring environment. The core components of the product use pressure chips based on SOI technology. Through temperature compensation and signal conditioning, the product has unrivaled accuracy, reliability and stability.
The SGQV-series gas pressure sensors are equipped with built-in filters that can filter out impurities in the measuring medium. They can be flexibly configured with various pressure interfaces and have the characteristics of being lightweight, small in size and convenient to install.
SOI chip technology
Analog voltage signal
High stability and reliability
Small size, light weight
Pressure range | 0~100kP | Type of pressure | Absolute pressure |
Overload pressure | 1.5×F.S | Breaking pressure | 3×F.S |
Operating temperature | -55℃~85℃(125℃can be choosed) | ||
Storage Temperature | -55℃~85℃ | Linearity | ±0.1%F.S |
Supply voltage | 8V±0.5V DC | Output | 0.2V~4.8V DC |
Full temperature full range error | ±0.5%F.S. | Pressure interface | M12×1 External thread |
Repeatability | ±0.05%F.S | Hysteresis | ±0.05%F.S |
Long stability | ±0.1%F.S./year | Weight | 24g |
Overall dimension:
