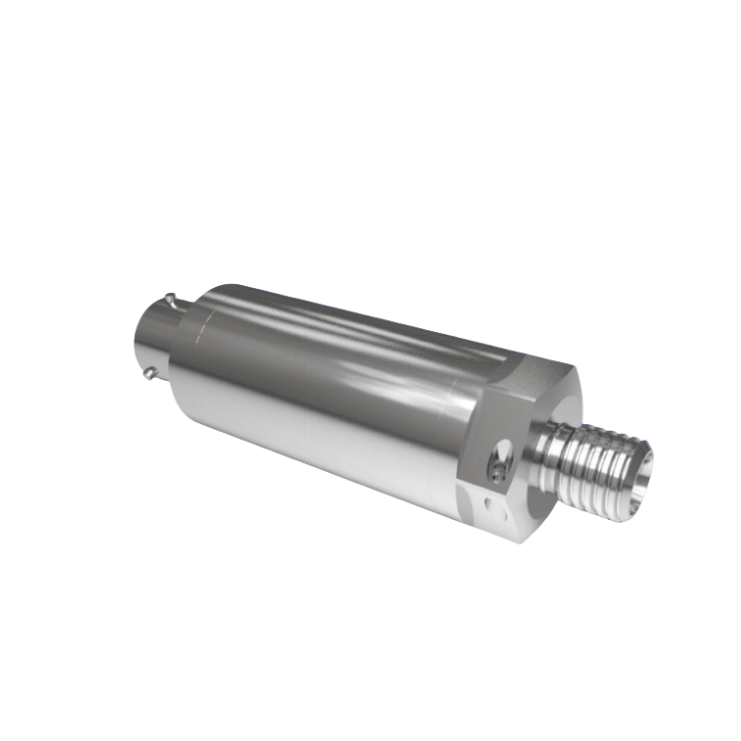

SG-X33
The SG-X33 series high-precision pressure sensor has excellent anti-interference ability, environmental adaptability, and electromagnetic compatibility performance, suitable for aviation application scenarios. The sensor adopts a fully sealed structure and achieves pressure measurement through a Wheatstone bridge. The change in pressure is converted into a change in voltage, and then combined with signal conditioning and amplification to output an analog signal.
SG-X33 Series High Performance Pressure Sensor features:
The error within the full temperature range can reach ±2.0%F.S
Electromagnetic compatibility meetsGJB151B
Wide temperature range
Pressure and electrical interfaces can be configured
SG-X33 Series High Performance Pressure Sensor specifications:
Pressure range | 0~25MPa | Type of pressure | Absolute pressure | ||
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||||
Overload pressure | 1.5×F.S | Breaking pressure | 2×F.S | ||
Operating temperature | -55℃~125℃ | ||||
Supply voltage | 10V DC | Output | 10mV~100mV | ||
Full temperature accuracy | ±0.5 %F.S. ±0.4 %F.S. | Electric interface | Three-wire | Voltage Output | |
Four-wire | |||||
Two-wire | current output | ||||
Three-wire | |||||
Output impedance | 2KΩ～6kΩ | Pressure interface | configurable | ||
Overall dimension:
