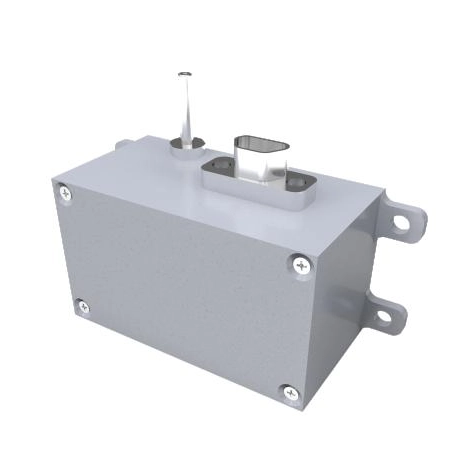

SG-T29
SG-T29 series is an integrated temperature and pressure sensor, equipped with RS-485, RS-422 or CAN bus interfaces, and can flexibly adapt the pressure interface and electrical connector according to the requirements of the back-end application. Due to its advantages such as a square shape and digital output, it is widely used in aviation pressure measurement systems, ground pressure controllers and meteorological measurement equipment.
SG-T29 Series Integrated Temperature and Pressure Sensor features:
Comprehensive accuracy ± 0.1% F.S
Pressure and temperature standard digital signal output
Multiple pressure type configurations
SG-T29 Series Integrated Temperature and Pressure Sensor specifications:
Pressure range | 0~100kPa | Comprehensive accuracy | ± 0.1% F.S |
Overload pressure | 1.5×F.S. | Breaking pressure | 2XF.S |
Operating temperature | -55℃~85℃ | Supply voltage | 12V～33V DC |
Type of pressure | Absolute pressure/differential pressure | ||
Measuring medium | Dry, non corrosive gas | ||
Pressure interface | Configurable,please consult | ||
Electric interface | Configurable,please consult | ||
Digital interface | RS 485 ,RS 422,CAN | ||
Overall dimension
