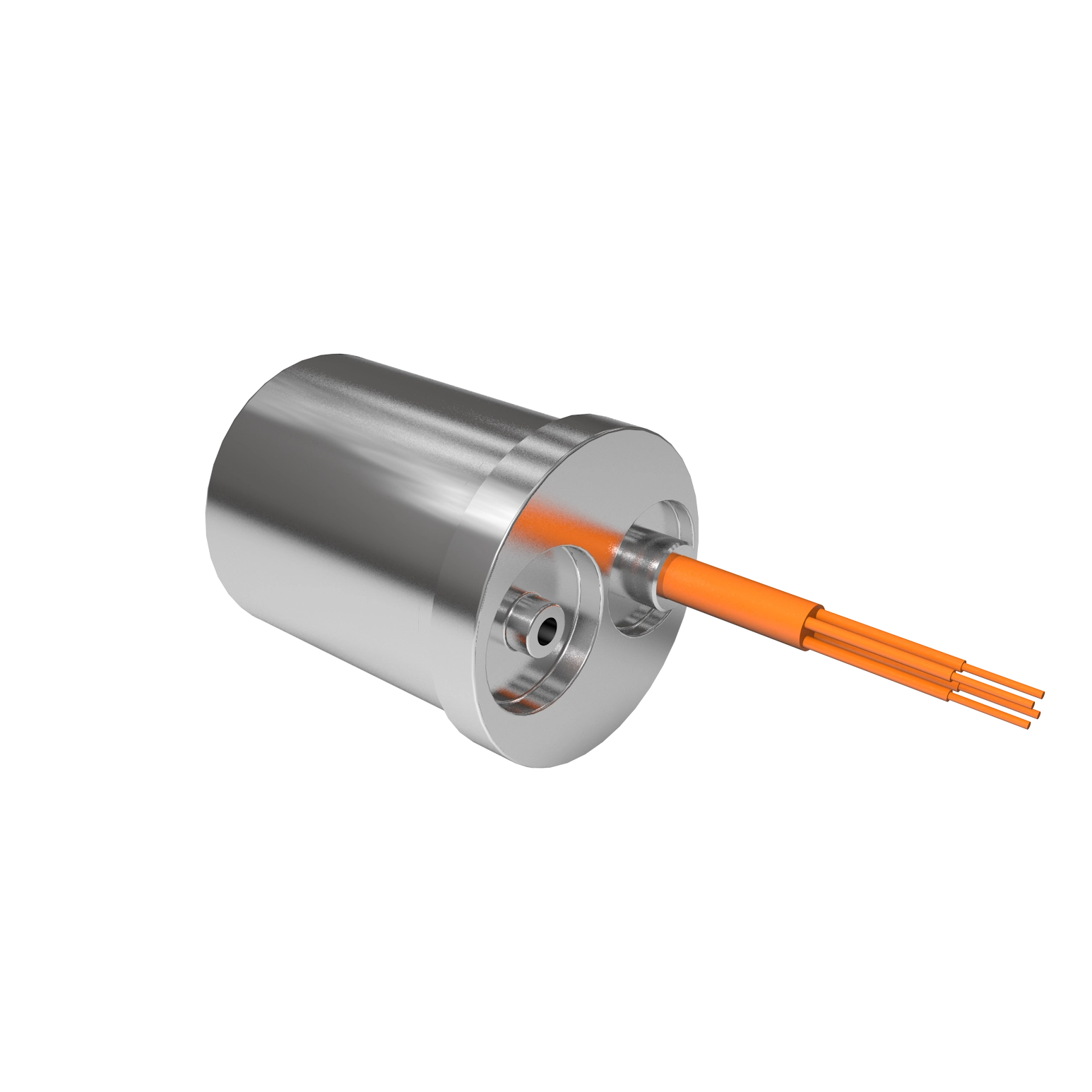

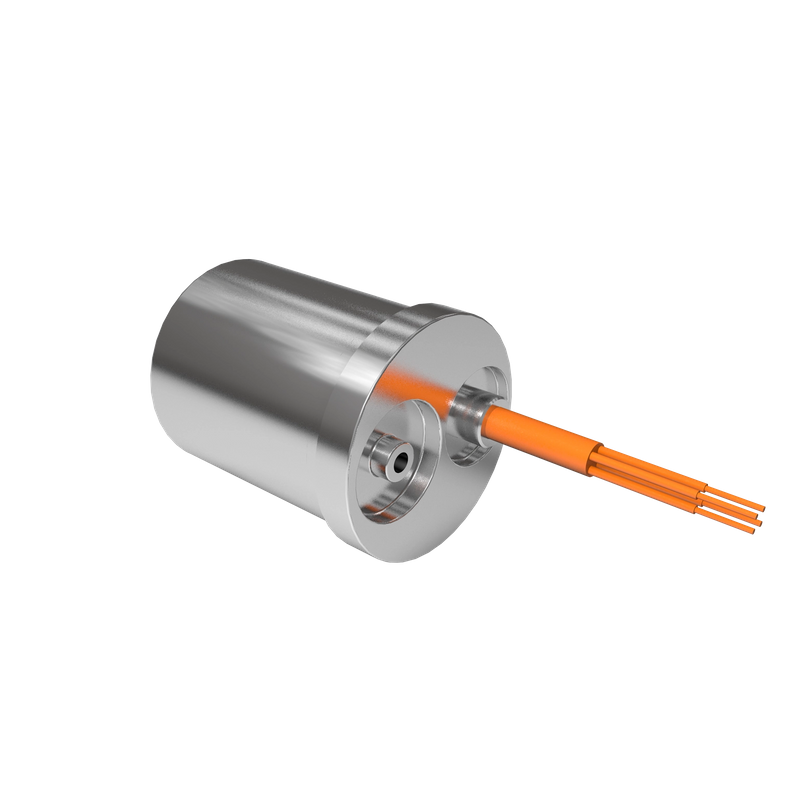

SG-R23
SG-R23 series pressure sensor is used for the measurement of air pressure or hydraulic pressure. The core component uses pressure chip based on SOI technology, after the measurement pressure is converted, the standard signal is output by temperature compensation and signal calibration which has characteristics of wide temperature range and good stability. Compact structure, all-metal package design, meet the requirements of aviation standard D0-160, can be compatible with a variety of media, with the ability to maintain stable work in harsh environment for a long time.
SG-R23 Series Highly Reliable Pressure Sensor features:
● High stability
● High reliability
● Good media compatibility
● Meet the DO-160 standard
SG-R23 Series Highly Reliable Pressure Sensor specifications：
Pressure range | 0~28MPa | Type of pressure | Absolute pressure | |
Measuring medium | Gas or liquid adapted to stainless steel 316L | |||
Overload pressure | 31MPa | Breaking pressure | 52MPa | |
Operating temperature | -55℃~85℃ Optional at 125℃ | |||
Supply voltage | 10V DC | Output | 10mV~100mV | |
Full temperature full range error | ±2.0%F.S. | Pressure interface | Configurable,please consult | |
Overall dimension:
