SG-P40

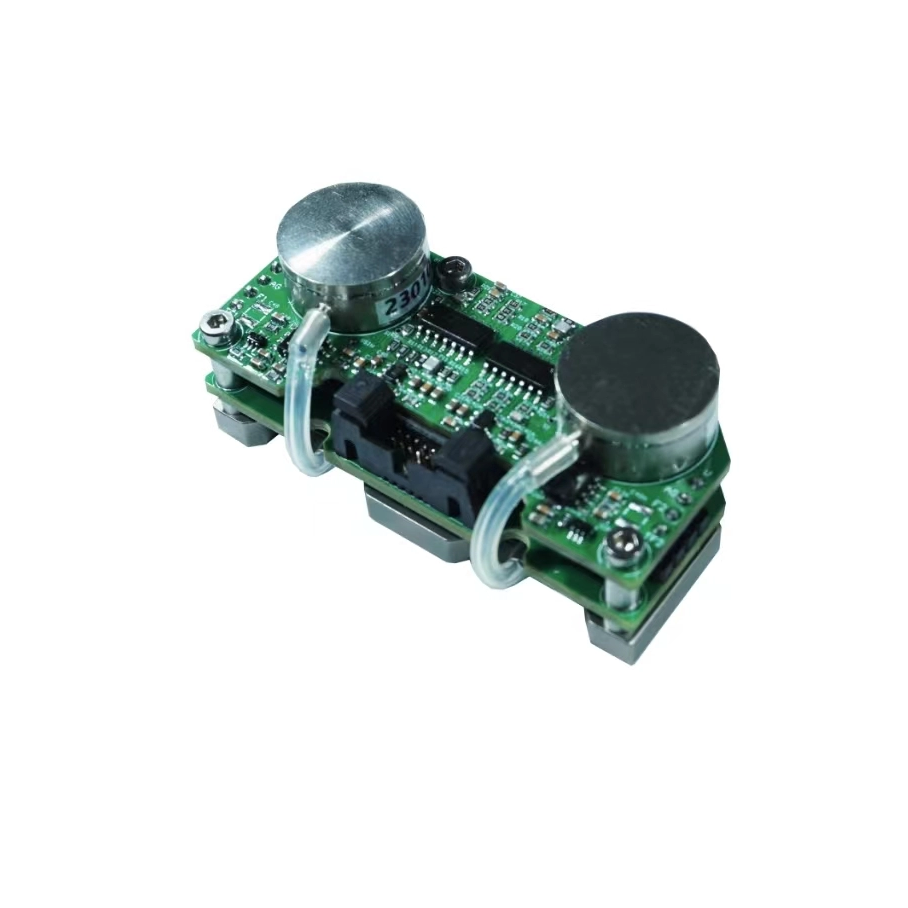

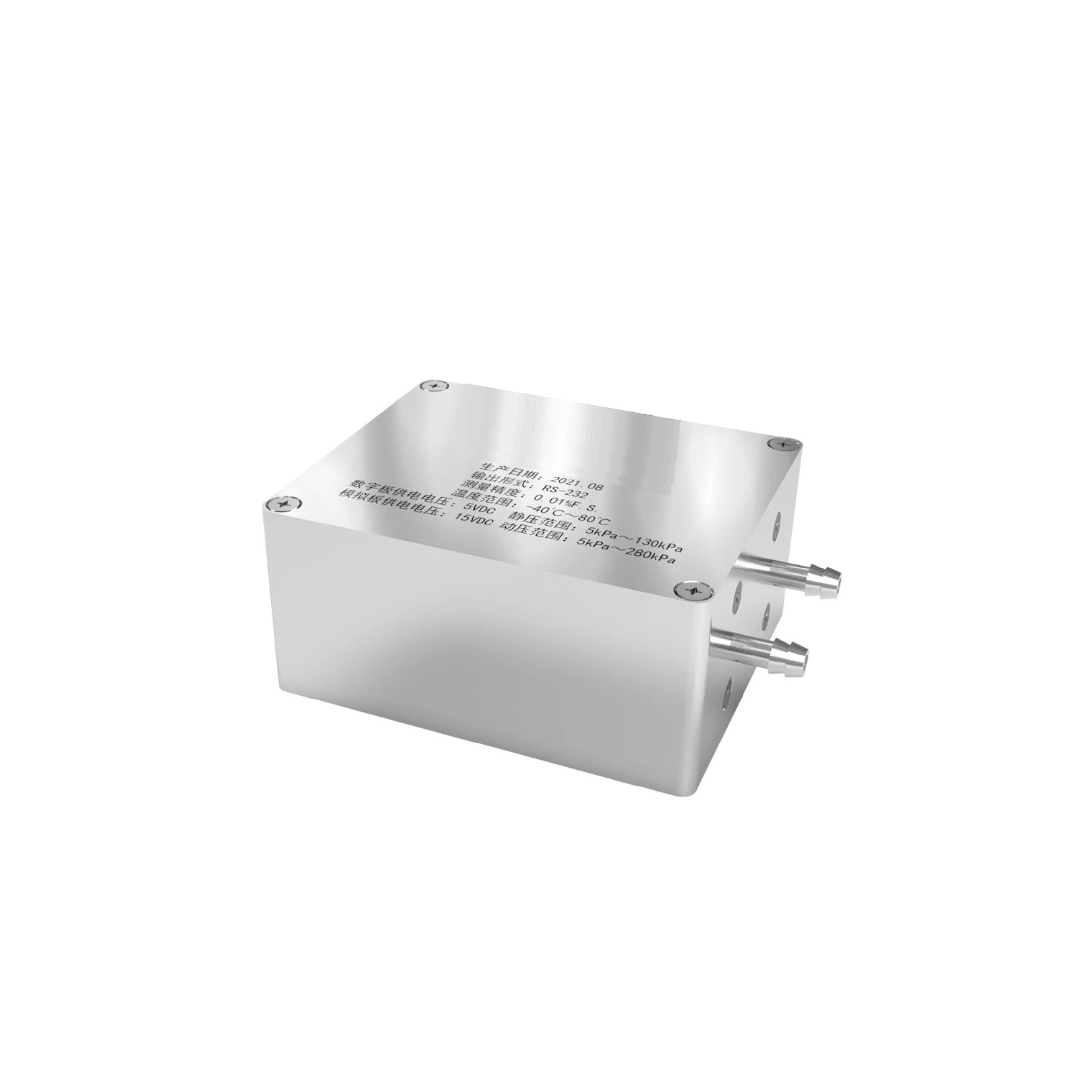

SG-P40 series high precision silicon vibration static pressure sensor is a high precision MEMS static and dynamic pressure sensor .Through quantization compensation of its output analog signal, and realize digital output. This series of products have a variety of output forms to choose, and with pressure gain calibration, pressure offset calibration, temperature offset calibration, can be applied to the UAV atmospheric data measurement system.
SG-P40 Series High Precision Silicon Vibration Static Pressure Sensor features:
●The comprehensive accuracy of full temperature and full range can reach ±0.01%F.S.
●Digital signal output
●The widest temperature range can reach-55℃~85℃
SG-P40 Series High Precision Silicon Vibration Static Pressure Sensor specifications:
Pressure range | Static pressure: 140kPa | Choose arbitrarily in 0 to optional pressure range with calibration range, minimum calibration pressure 5kPa | ||
Total pressure: 280kPa | ||||
Type of pressure | Absolute pressure | |||
Compensation temperature range | -55℃~85℃ | |||
Overload pressure | 140kPa:3.0×F.S. | Breaking pressure | 140kPa:3.5×F.S. | |
280kPa:1.5×F.S. | 280kPa:2.0×F.S. | |||
Supply Voltage | SG-P40: | Digital board:5±0.5V DC | ||
Analog board:15±0.5V DC | ||||
SG-41: | 6V~240V DC | |||
Power consumption | SG-40: | ≤0.5W (Digital board) | ||
≤1W(Analog board) | ||||
SG-41: | ≤3W | |||
Long-term stability | Upgrade ±0.01%F.S./year | |||
Standard grade ±0.02%F.S./year | ||||
Optional pressure interface | Φ3.5mm×9mm pagoda connector( only suitable for SG-P40) | |||
Two Φ3 holes at the bottom(suitable for SG-P41) | ||||
Output method | RS-232(SG-P40) | Optional comprehensive accuracy | ±0.01%F.S. | |
RS-485(SG-P41) | ±0.02%F.S. | |||
RS-422(SG-P41) | ±0.05%F.S. | |||
CAN(SG-P41) | ||||
Overall dimension
SG-P40
SG-P 41
SG-P40 series high precision silicon vibration static pressure sensor is a high precision MEMS static and dynamic pressure sensor .Through quantization compensation of its output analog signal, and realize digital output. This series of products have a variety of output forms to choose, and with pressure gain calibration, pressure offset calibration, temperature offset calibration, can be applied to the UAV atmospheric data measurement system.
SG-P40 Series High Precision Silicon Vibration Static Pressure Sensor features:
●The comprehensive accuracy of full temperature and full range can reach ±0.01%F.S.
●Digital signal output
●The widest temperature range can reach-55℃~85℃
SG-P40 Series High Precision Silicon Vibration Static Pressure Sensor specifications:
Pressure range | Static pressure: 140kPa | Choose arbitrarily in 0 to optional pressure range with calibration range, minimum calibration pressure 5kPa | ||
Total pressure: 280kPa | ||||
Type of pressure | Absolute pressure | |||
Compensation temperature range | -55℃~85℃ | |||
Overload pressure | 140kPa:3.0×F.S. | Breaking pressure | 140kPa:3.5×F.S. | |
280kPa:1.5×F.S. | 280kPa:2.0×F.S. | |||
Supply Voltage | SG-P40: | Digital board:5±0.5V DC | ||
Analog board:15±0.5V DC | ||||
SG-41: | 6V~240V DC | |||
Power consumption | SG-40: | ≤0.5W (Digital board) | ||
≤1W(Analog board) | ||||
SG-41: | ≤3W | |||
Long-term stability | Upgrade ±0.01%F.S./year | |||
Standard grade ±0.02%F.S./year | ||||
Optional pressure interface | Φ3.5mm×9mm pagoda connector( only suitable for SG-P40) | |||
Two Φ3 holes at the bottom(suitable for SG-P41) | ||||
Output method | RS-232(SG-P40) | Optional comprehensive accuracy | ±0.01%F.S. | |
RS-485(SG-P41) | ±0.02%F.S. | |||
RS-422(SG-P41) | ±0.05%F.S. | |||
CAN(SG-P41) | ||||
Overall dimension
SG-P40
SG-P 41
