1.The comprehensive accuracy of full temperature and full range can reach ±0.01%F.S.
2.Frequency signal output
3.The widest temperature range can reach-55℃~85℃
4.Avariety of electrical interface and pressure interface are optional
SG-P2
Silicon resonant pressure sensor is the highest precision pressure sensor at present. Because of its high precision, good stability, quasi-digital output and other advantages, which can be widely used in aviation atmospheric data measurement system, pressure controller and meteorological measurement equipment.
The resonant structure of the sensor core adopts the tuning fork beam design, and its working mode is in-plane vibration. The interaction between electrical signal and mechanical vibration is realized through electrostatic excitation and capacitive vibration pickup, and then the frequency signal is converted into the output the closed-loop control circuit.

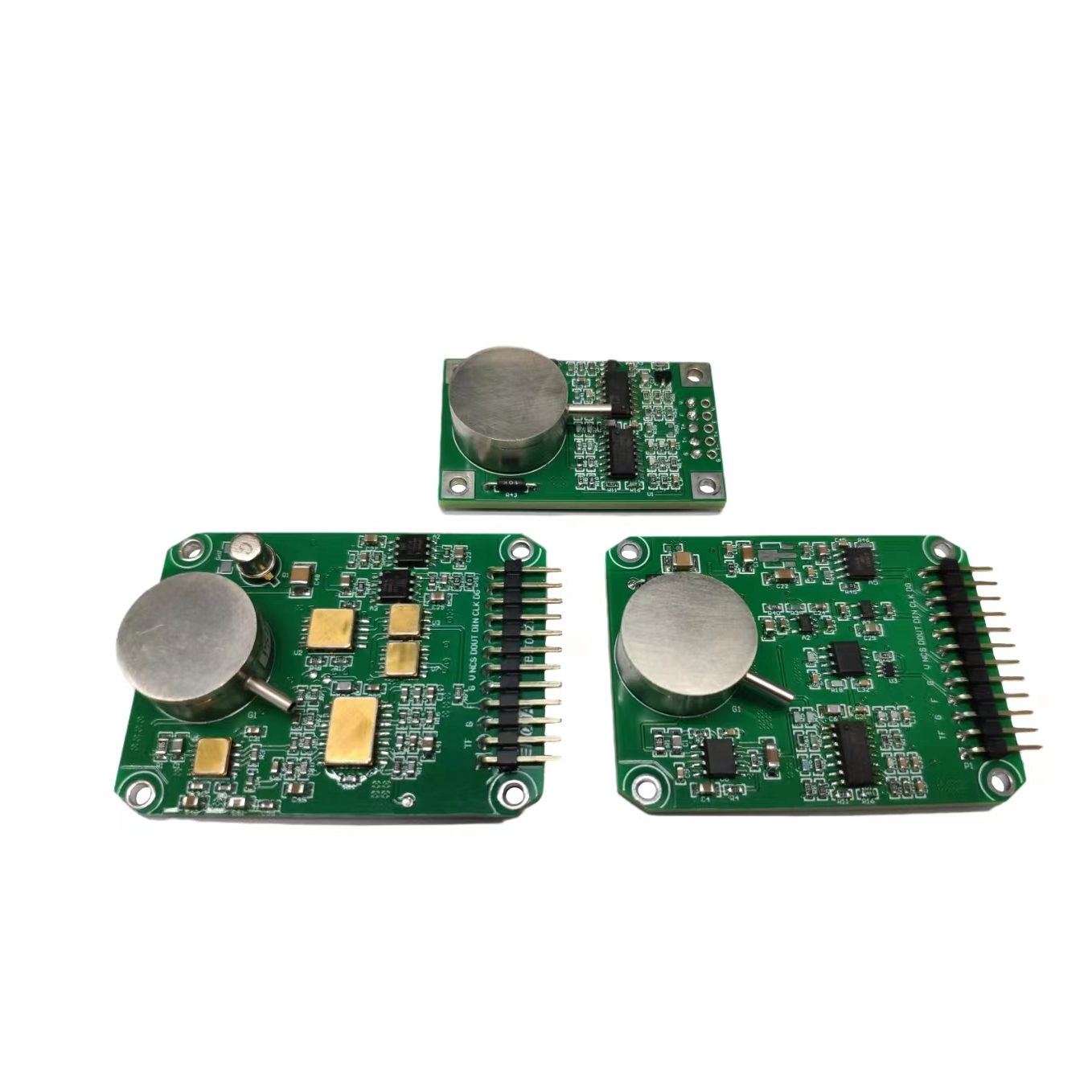

SG-P2 series high precision silicon resonant pressure sensor adopts simple pressure interface and electrical interface, under the condition of ensuring performance, the size of the sensor is compressed to the minimum which is convenient for product disassembly and installation.
●The comprehensive accuracy of full temperature and full range can reach ±0.01%F.S.
●Frequency signal output
●The widest temperature range can reach-55℃~85℃
●Avariety of electrical interface and pressure interface are optional
Pressure range | 140kPa | Choose arbitrarily in 0 to optional pressure range with calibration range, minimum calibration pressure 5kPa | |||
280kPa | |||||
350kPa | |||||
Type of pressure | Absolute pressure | ||||
Measuring medium | Dry, non-corrosive gas (water bare structure ) | ||||
Breaking pressure | 3.5×F.S. | Overload pressure | 3.0×F.S. | ||
2.0×F.S. | 1.5×F.S. | ||||
1.5×F.S. | 1.2×F.S. | ||||
Supply voltage | 15V±0.5V DC | Current consumption | ＜30mA | ||
Optional combined accuracy | ±0.01%F.S. | Long-term stability | Raised stage±0.01%F.S. | ||
±0.02%F.S. | Standard grade±0.02%F.S. | ||||
Response time | Pressure changes from10%F.S. to 90%F.S.＜25ms | Acceleration effects | ＜5Pa/g | ||
Start-up time | 250ms reach the accuracy index after power supply | ||||
Output range | Pressure frequency:30kHz~50kHz | ||||
Temperature frequency:2kHz~15kHz | |||||
Output method | Pressure frequency | ||||
Temperature frequency | |||||
Temperature voltage | |||||
Compensation temperature range | -10～50℃ | Pressure interface | Φ2mm×7mm | ||
-40～80℃ | |||||
-55～85℃ | |||||
Mark: Output form: Both pressure output and temperature output are square wave frequency signals. The square wave level is optional :3.3V TTL, 5V TTL. | |||||
Overall Dimension :
Silicon resonant pressure sensor is the highest precision pressure sensor at present. Because of its high precision, good stability, quasi-digital output and other advantages, which can be widely used in aviation atmospheric data measurement system, pressure controller and meteorological measurement equipment.
The resonant structure of the sensor core adopts the tuning fork beam design, and its working mode is in-plane vibration. The interaction between electrical signal and mechanical vibration is realized through electrostatic excitation and capacitive vibration pickup, and then the frequency signal is converted into the output the closed-loop control circuit.
SG-P2 series high precision silicon resonant pressure sensor adopts simple pressure interface and electrical interface, under the condition of ensuring performance, the size of the sensor is compressed to the minimum which is convenient for product disassembly and installation.
●The comprehensive accuracy of full temperature and full range can reach ±0.01%F.S.
●Frequency signal output
●The widest temperature range can reach-55℃~85℃
●Avariety of electrical interface and pressure interface are optional
Pressure range | 140kPa | Choose arbitrarily in 0 to optional pressure range with calibration range, minimum calibration pressure 5kPa | |||
280kPa | |||||
350kPa | |||||
Type of pressure | Absolute pressure | ||||
Measuring medium | Dry, non-corrosive gas (water bare structure ) | ||||
Breaking pressure | 3.5×F.S. | Overload pressure | 3.0×F.S. | ||
2.0×F.S. | 1.5×F.S. | ||||
1.5×F.S. | 1.2×F.S. | ||||
Supply voltage | 15V±0.5V DC | Current consumption | ＜30mA | ||
Optional combined accuracy | ±0.01%F.S. | Long-term stability | Raised stage±0.01%F.S. | ||
±0.02%F.S. | Standard grade±0.02%F.S. | ||||
Response time | Pressure changes from10%F.S. to 90%F.S.＜25ms | Acceleration effects | ＜5Pa/g | ||
Start-up time | 250ms reach the accuracy index after power supply | ||||
Output range | Pressure frequency:30kHz~50kHz | ||||
Temperature frequency:2kHz~15kHz | |||||
Output method | Pressure frequency | ||||
Temperature frequency | |||||
Temperature voltage | |||||
Compensation temperature range | -10～50℃ | Pressure interface | Φ2mm×7mm | ||
-40～80℃ | |||||
-55～85℃ | |||||
Mark: Output form: Both pressure output and temperature output are square wave frequency signals. The square wave level is optional :3.3V TTL, 5V TTL. | |||||
Overall Dimension :
