SG-P22

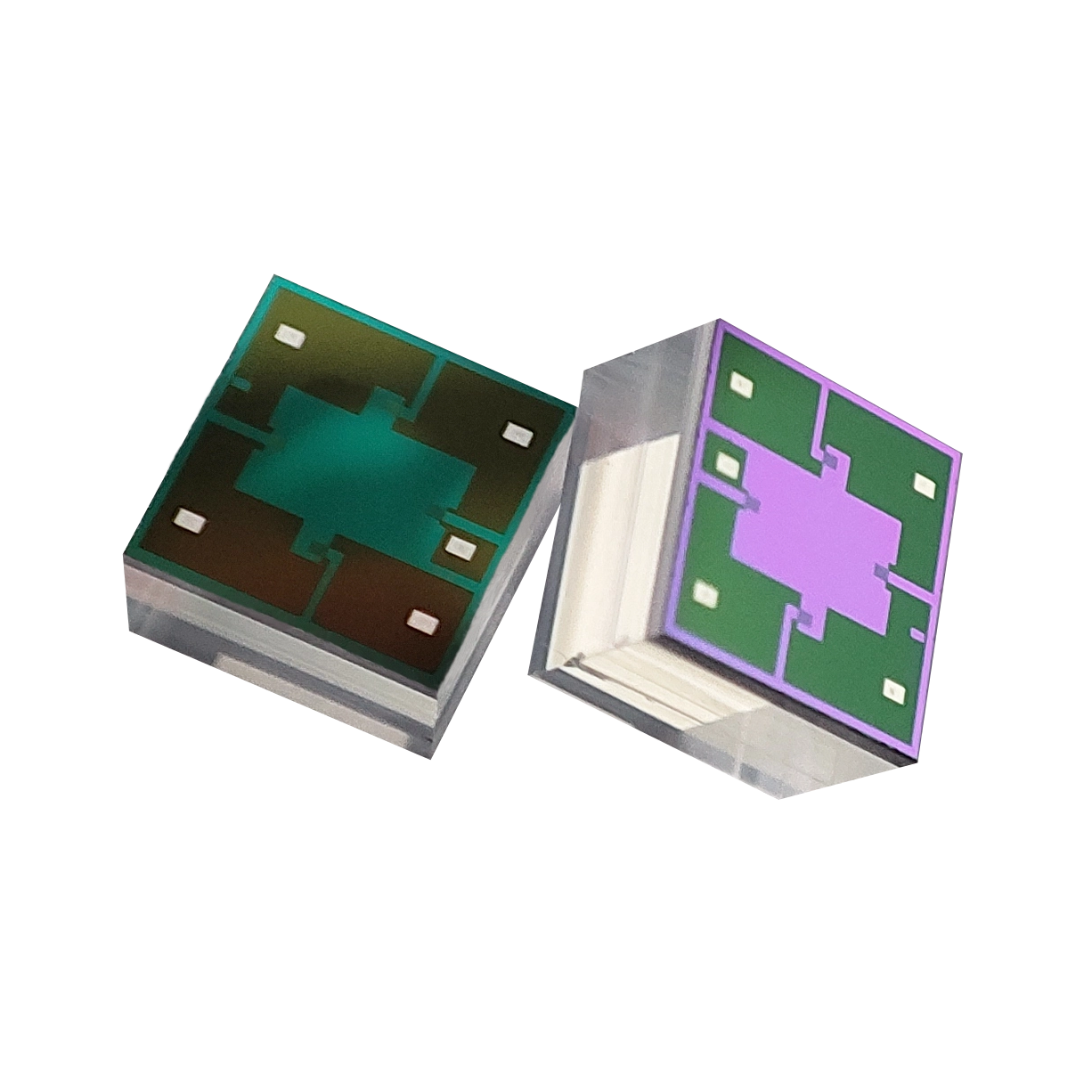

SG-P22 series pressure chip, is a silicon piezoresistive pressure sensitive chip based on SOI technology. This series of chips uses the piezoresistive detection principle, when the pressure sensitive film is deformed under pressure, the resistance change on the sensitive film characterizes the input pressure. Under the excitation of constant voltage/constant current source, the output voltage generated is linear with the input pressure.
SG-P22 series chip with stability, high repeatability and wide operating temperature zone characteristics, suitable for various packaging forms, can provide absolute pressure(A)or gauge pressure(G) according to the different application environment chip, suitable for digital compensation and resistance network compensation.
SG-P22 Series Low Temperature Drift Pressure Chip features:
●High repeatability
●Operating temperature range-55℃~180℃
●High reliability
SG-P22 Series Low Temperature Drift Pressure Chip applications:
●Weather measurement
●Air data system
●Oil drilling
●Industrial measurement and control
SG-P22 Series Low Temperature Drift Pressure Chip specifications:
Standard range | Range code | Pressure range | Type | Remarks | |||||
10M0 | 0~10MPa | A | 1500psi | ||||||
20M0 | 0~20MPa | A | 3000psi | ||||||
28M0 | 0~28MPa | A | 4000psi | ||||||
45M0 | 0~45MPa | A | 6500psi | ||||||
70M0 | 0~70MPa | A | 10000psi | ||||||
Overload pressure | double | Rated pressure | |||||||
Performance parameters | Parameters | Min | Typical | Max | Units | Mark | |||
Repeatability | 0.01 | 0.03 | 0.05 | ±%FSO | 2 | ||||
Linearity | 0.1 | 0.15 | 0.2 | ±%FSO | 1 | ||||
Hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2 | ||||
Zero point humidity hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2、3 | ||||
Sensitivity temperature hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2、3 | ||||
Full range span | 80 | 100 | 120 | mv | 2、3 | ||||
Zero point temperature coefficient TCO | -500 | -100 | 500 | ppm/℃ | 2 | ||||
Sensitivity temperature coefficient TCS | -1200 | -950 | -800 | ppm/℃ | |||||
Bridge resistance temperature coefficient TCR | 1400 | 1600 | 1800 | ppm/℃ | 2 | ||||
Chip size | Pressure range | 10MPa~70MPa | |||||||
Overall dimensions(mm) | 2.5×2.5×2.4 | ||||||||
Characteristic parameters | Excitation | 2~10V | |||||||
0.2~2mA | |||||||||
Bridge resistance | 2kΩ~5kΩ | ||||||||
Bridge form | Half open bridge | ||||||||
Operating temperature range | -55℃~180℃ | ||||||||
Storage temperature range | -55℃~180℃ | ||||||||
Bridge form | Half-open bridge | ||||||||
Suitable medium | Clean,dry and free of corrosive gas | ||||||||
SG-P22 series pressure chip, is a silicon piezoresistive pressure sensitive chip based on SOI technology. This series of chips uses the piezoresistive detection principle, when the pressure sensitive film is deformed under pressure, the resistance change on the sensitive film characterizes the input pressure. Under the excitation of constant voltage/constant current source, the output voltage generated is linear with the input pressure.
SG-P22 series chip with stability, high repeatability and wide operating temperature zone characteristics, suitable for various packaging forms, can provide absolute pressure(A)or gauge pressure(G) according to the different application environment chip, suitable for digital compensation and resistance network compensation.
SG-P22 Series Low Temperature Drift Pressure Chip features:
●High repeatability
●Operating temperature range-55℃~180℃
●High reliability
SG-P22 Series Low Temperature Drift Pressure Chip applications:
●Weather measurement
●Air data system
●Oil drilling
●Industrial measurement and control
SG-P22 Series Low Temperature Drift Pressure Chip specifications:
Standard range | Range code | Pressure range | Type | Remarks | |||||
10M0 | 0~10MPa | A | 1500psi | ||||||
20M0 | 0~20MPa | A | 3000psi | ||||||
28M0 | 0~28MPa | A | 4000psi | ||||||
45M0 | 0~45MPa | A | 6500psi | ||||||
70M0 | 0~70MPa | A | 10000psi | ||||||
Overload pressure | double | Rated pressure | |||||||
Performance parameters | Parameters | Min | Typical | Max | Units | Mark | |||
Repeatability | 0.01 | 0.03 | 0.05 | ±%FSO | 2 | ||||
Linearity | 0.1 | 0.15 | 0.2 | ±%FSO | 1 | ||||
Hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2 | ||||
Zero point humidity hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2、3 | ||||
Sensitivity temperature hysteresis | 0.01 | 0.03 | 0.05 | ±%FSO | 2、3 | ||||
Full range span | 80 | 100 | 120 | mv | 2、3 | ||||
Zero point temperature coefficient TCO | -500 | -100 | 500 | ppm/℃ | 2 | ||||
Sensitivity temperature coefficient TCS | -1200 | -950 | -800 | ppm/℃ | |||||
Bridge resistance temperature coefficient TCR | 1400 | 1600 | 1800 | ppm/℃ | 2 | ||||
Chip size | Pressure range | 10MPa~70MPa | |||||||
Overall dimensions(mm) | 2.5×2.5×2.4 | ||||||||
Characteristic parameters | Excitation | 2~10V | |||||||
0.2~2mA | |||||||||
Bridge resistance | 2kΩ~5kΩ | ||||||||
Bridge form | Half open bridge | ||||||||
Operating temperature range | -55℃~180℃ | ||||||||
Storage temperature range | -55℃~180℃ | ||||||||
Bridge form | Half-open bridge | ||||||||
Suitable medium | Clean,dry and free of corrosive gas | ||||||||
