1.Wide operating temperature range
2.High precision
3.Compact assembly size
4.Temperature and pressure integrated

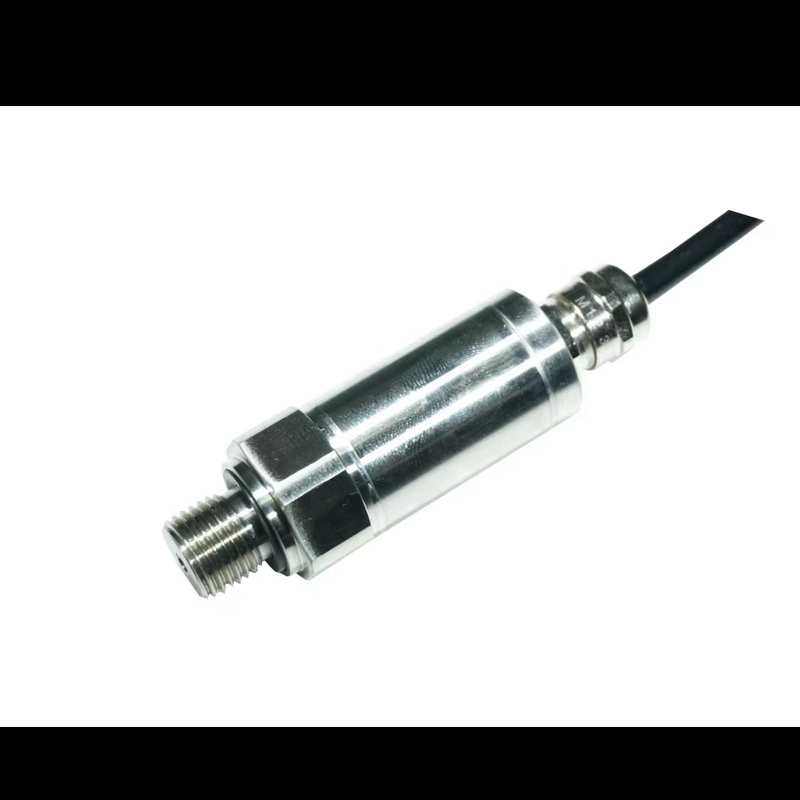

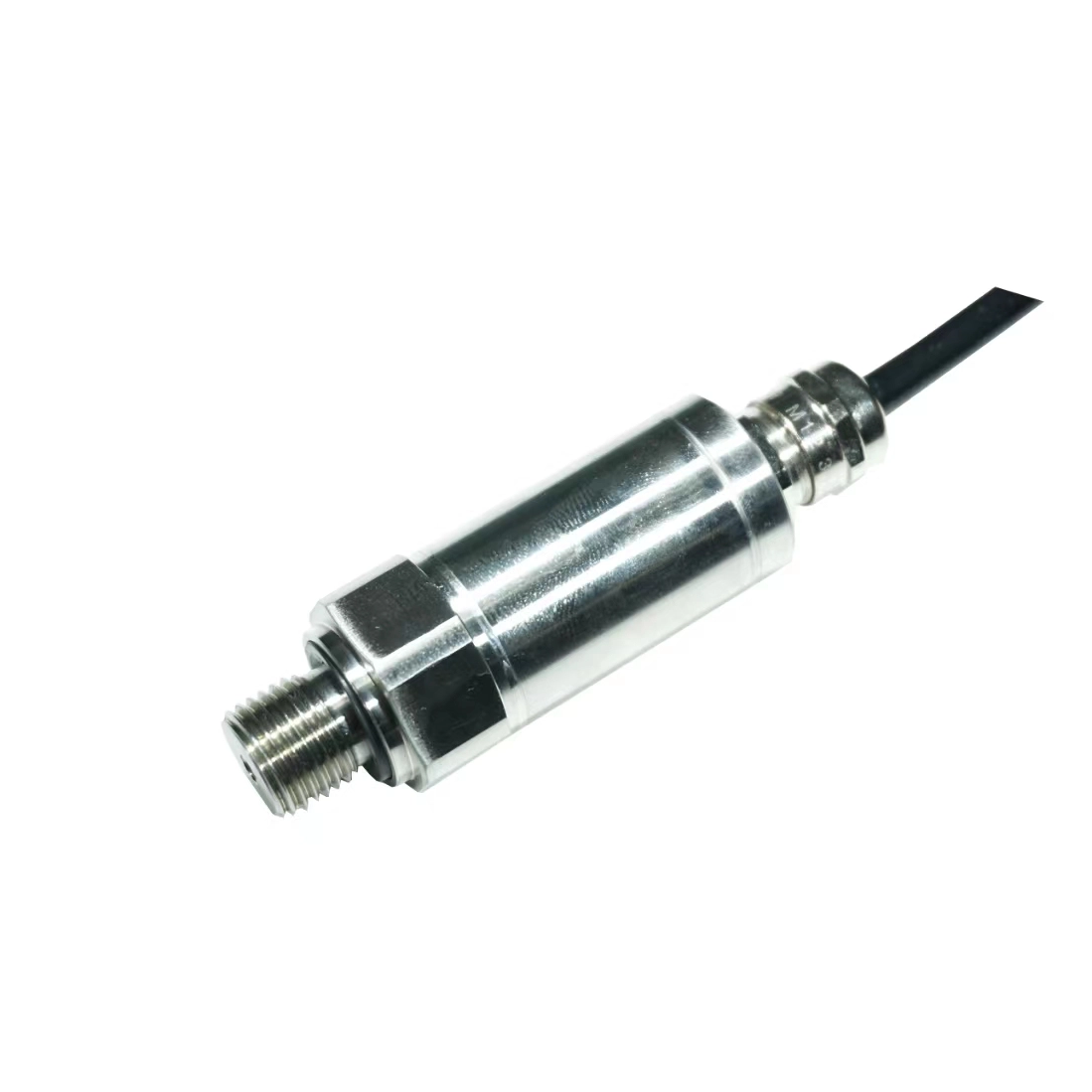

SG-P28
SG-P28 series high precision temperature and pressure integrated sensor is a wide voltage, high precision, low power consumption, with analog voltage and RS-485 digital output temperature and pressure integrated pressure sensor, the product shape, assembly size is small, with good interchangeability, easy to control the working mode, with good environmental adaptability, and has high reliability, high maintainability and other characteristics. It’s suitable for pressure measurement application scenarios with high requirements such as precision, power consumption and environmental adaptability.
SG-P28 series high precision temperature and pressure integrated sensor features:
●Wide operating temperature range
●High precision
●Compact assembly size
●Temperature and pressure integrated
SG-P28 series high precision temperature and pressure integrated sensor specifications:
Pressure range | 0~100kPa, Max to 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -10℃~50℃ | Supply voltage | 5V~33V DC |
Current consumption | ≤15mA（@5V DC） | Pressure interface | G1/4 external thread |
Pressure output | RS-485 | Temperature output | RS-485 |
Pressure accuracy | ±0.2%F.S. | Temperature accuracy | ≤±1℃ |
Long-term stability | ±0.1%F.S./year | ||
Overall Dimension:
SG-P28 series high precision temperature and pressure integrated sensor is a wide voltage, high precision, low power consumption, with analog voltage and RS-485 digital output temperature and pressure integrated pressure sensor, the product shape, assembly size is small, with good interchangeability, easy to control the working mode, with good environmental adaptability, and has high reliability, high maintainability and other characteristics. It’s suitable for pressure measurement application scenarios with high requirements such as precision, power consumption and environmental adaptability.
SG-P28 series high precision temperature and pressure integrated sensor features:
●Wide operating temperature range
●High precision
●Compact assembly size
●Temperature and pressure integrated
SG-P28 series high precision temperature and pressure integrated sensor specifications:
Pressure range | 0~100kPa, Max to 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -10℃~50℃ | Supply voltage | 5V~33V DC |
Current consumption | ≤15mA（@5V DC） | Pressure interface | G1/4 external thread |
Pressure output | RS-485 | Temperature output | RS-485 |
Pressure accuracy | ±0.2%F.S. | Temperature accuracy | ≤±1℃ |
Long-term stability | ±0.1%F.S./year | ||
Overall Dimension:
