1.Large overload(Max 70MPa)
2.Two outputs(analog voltage and RS-485 communication interface, standard Modbus protocol)
3.All-titanium body
4.High frequency sound(analog output 1kHz; RS-485 output 200Hz)

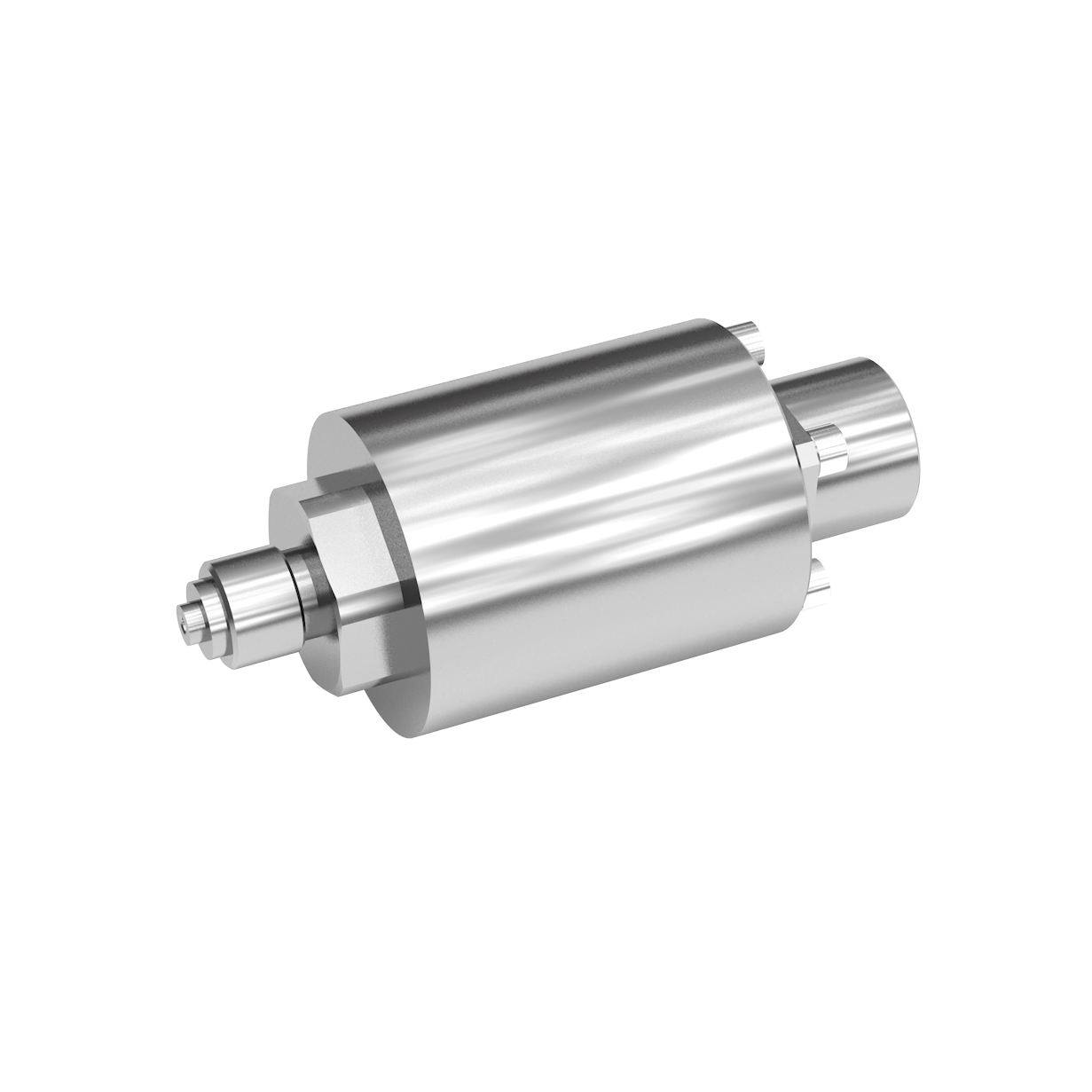

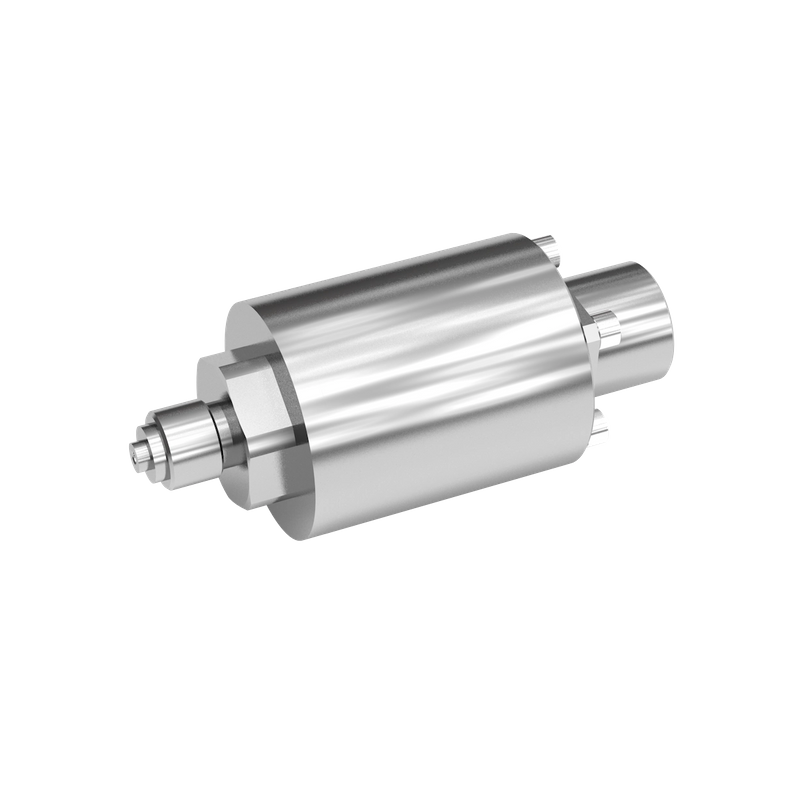

SG-Y36
SG-Y36 is a pressure sensor with high soft precision, low power consumption and high frequency response. The product adopts titanium alloy body, which has extremely high overload performance.With analog voltage and RS485 two forms of output. RS485 communication, in line with Modbus RTU protocol. This product has excellent environmental adaptability, can cope with high overload, high reliability of the use of the environment.
SG-Y36 series high overload pressure sensor features:
●Large overload(Max 70MPa)
●Two outputs(analog voltage and RS-485 communication interface, standard Modbus protocol)
●All-titanium body
●High frequency sound(analog output 1kHz; RS-485 output 200Hz)
SG-Y36 series high overload pressure sensor specifications:
Pressure range | 0~1MPa, Max 10MPa | Type of pressure | Absolute pressure/seal pressure |
Measuring medium | Gases or liquids suitable for titanium alloys. | ||
Overload pressure | 5×F.S. | Breaking pressure | 10×F.S. |
Compensated temperature range | -10℃~50℃ | Supply voltage | 5V~33V DC |
Current consumption | ≤15mA（@5V DC） | Pressure interface | G1/4 external thread |
Pressure output | RS-485 | Temperature output | RS-485 |
Overall accuracy | ±0.2%F.S. | Temperature accuracy | ≤±1℃ |
Long-term stability | ±0.1%F.S./year | ||
Overall Dimension:
