1.Wide range operate temperature
2.Wide compensation temperature range
3.High reliability
4.Flexible pressure interface

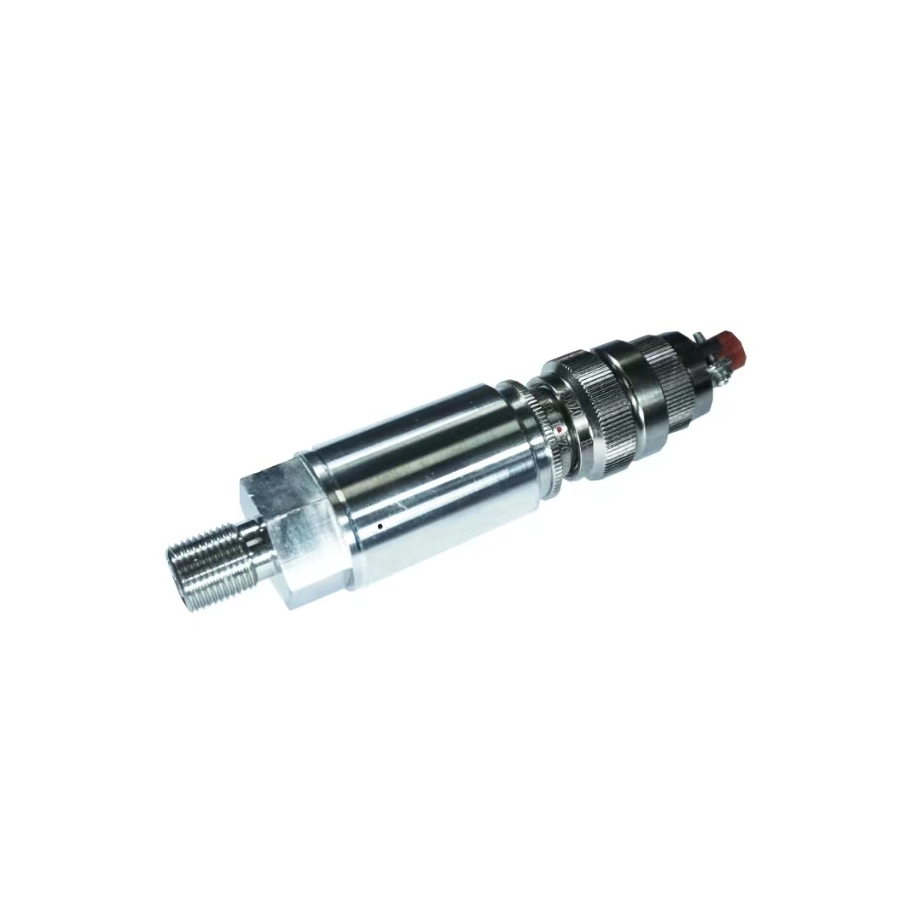

SG-V28
The SG-V28 pressure sensor is a conventional wide-temperature analog voltage output pressure sensor. The product has a small shape and assembly size, has good interchangeability, convenient working mode control, good environmental adaptability, and has characteristics such as high reliability and high maintainability. The product is widely used in pressure measurement application scenarios such as gas turbines and marine engines.
SG-V28 series pressure sensor features：
Wide range operate temperature
Wide compensation temperature range
High reliability
Flexible pressure interface
SG-V28 series pressure sensor specifications:
Pressure range | 0~100kPa, Max 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -55℃~125℃ | Current consumption | ≤10mA（@12V DC） |
Supply voltage | 6V~20V DC | Pressure Output | 0.5V~4.5VDC |
Comprehensive accuracy | ±0.5%F.S. | Long-term stability | ±0.1%F.S./year |
Pressure interface | M12×1 external thread | ||
Overall Dimension:
The SG-V28 pressure sensor is a conventional wide-temperature analog voltage output pressure sensor. The product has a small shape and assembly size, has good interchangeability, convenient working mode control, good environmental adaptability, and has characteristics such as high reliability and high maintainability. The product is widely used in pressure measurement application scenarios such as gas turbines and marine engines.
SG-V28 series pressure sensor features：
Wide range operate temperature
Wide compensation temperature range
High reliability
Flexible pressure interface
SG-V28 series pressure sensor specifications:
Pressure range | 0~100kPa, Max 10MPa | Type of pressure | Gauge/absolute pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Overload pressure | 2×F.S. | Breaking pressure | 3×F.S. |
Compensated temperature range | -55℃~125℃ | Current consumption | ≤10mA（@12V DC） |
Supply voltage | 6V~20V DC | Pressure Output | 0.5V~4.5VDC |
Comprehensive accuracy | ±0.5%F.S. | Long-term stability | ±0.1%F.S./year |
Pressure interface | M12×1 external thread | ||
Overall Dimension:
