SG192
SANGAS

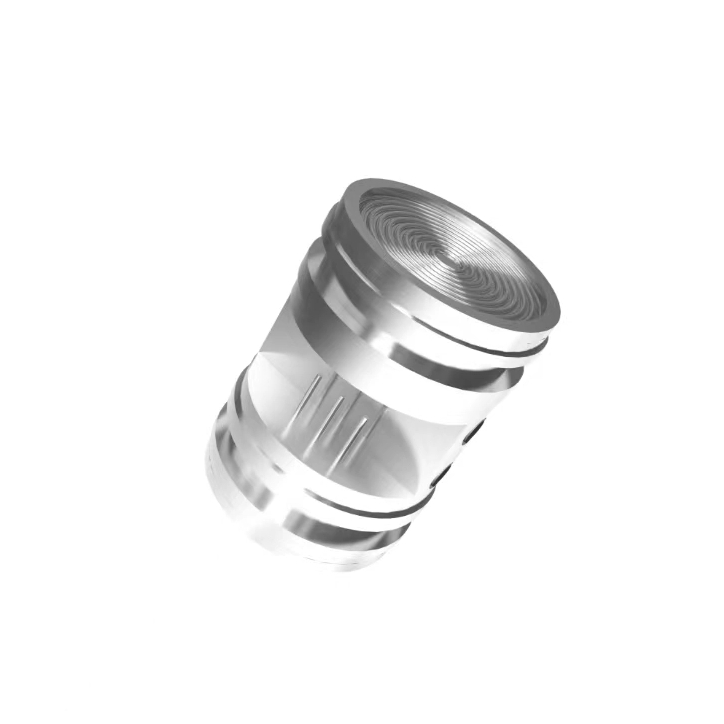

SG192 series differential pressure core adopts dielectric isolation type package form which can complete the differential pressure measurement at both ends. The SG192 series core has high repeatability, high reliability and wide working temperature zone.
●Good stability
●High reliability
●Good media compatibility
●Operating temperature range-55℃~150℃
Pressure range | 0~100kPa, up to 2MPa | Type of pressure | Differential pressure |
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Nonlinearity | ±0.25%F.S. | ||
Overload pressure | 1.5×F.S. | Breaking pressure | 2×F.S. |
Temperature range | -55℃~150℃ | Supply voltage | 2V~10VDC (0.2mA~2mA) |
Repeatability | ±0.1%F.S. | Lag | ±0.1%F.S. |
Overall dimension:
Mark：All dimensions are in millimeters
