1.Dielectric isolation package
2.High reliability
3.Thread mounting
SG131
SANGAS

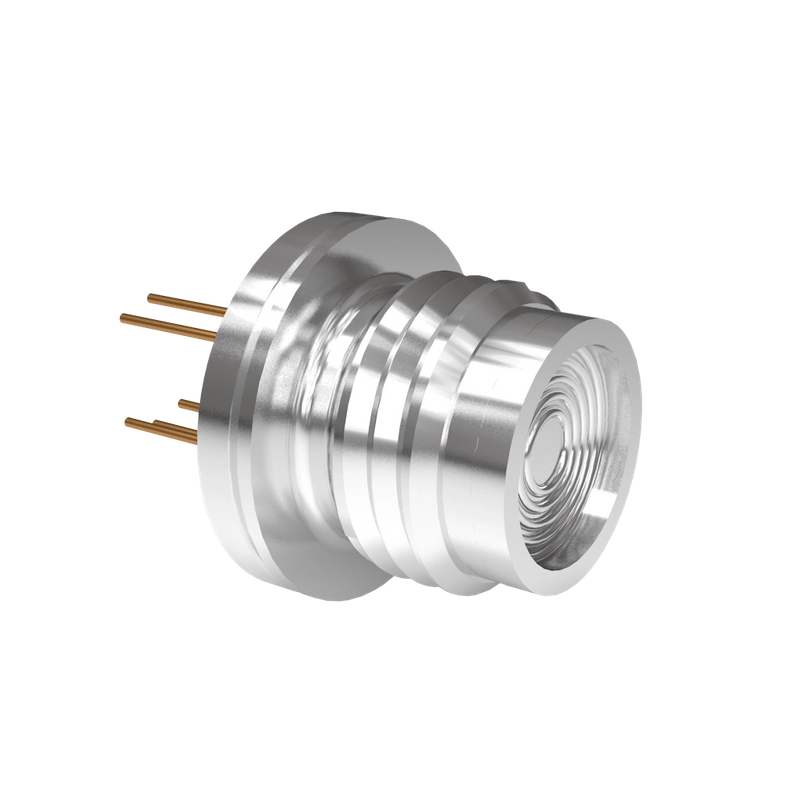

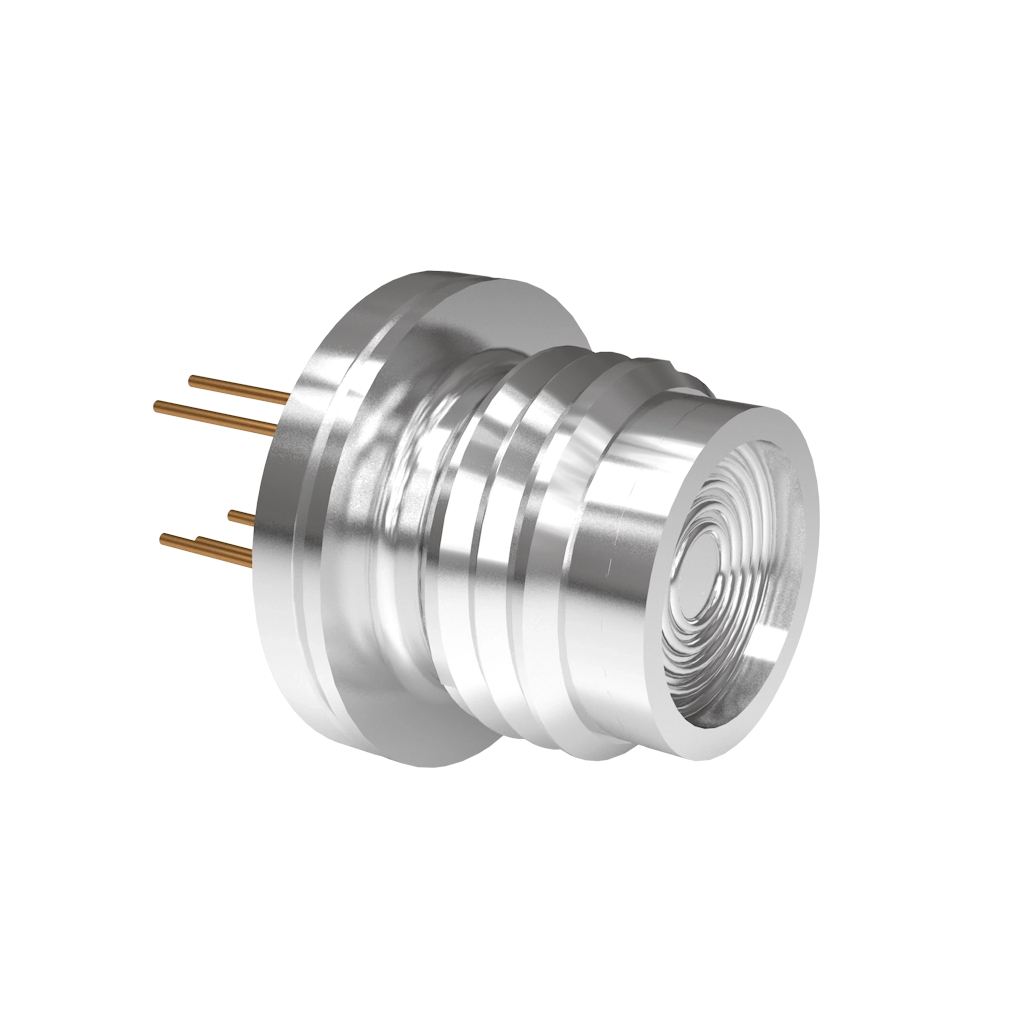

SG131 series pressure core adopts dielectric isolation type package form, through the thread directly installed on the system for pressure measurement, can achieve up to 35MPa pressure measurement, and provide absolute pressure, sealed pressure two pressure measurement forms. The SG131 series pressure core has high repeatability, high pressure resistance, high reliability and wide working temperature zone.
●Dielectric isolation package
●High reliability
●Thread mounting
Pressure range | 0~10MPa, up to 35MPa | ||
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Type of pressure | Absolute pressure/seal pressure | ||
Nonlinearity | ±0.25%F.S | ||
Overload pressure | 1.5×F.S. | Breaking pressure | 2×F.S. |
Temperature range | -55℃~150℃ | Supply voltage | 2V~10VDC (0.2mA~2mA) |
Repeatability | ±0.1%F.S. | Lag | ±0.1%F.S. |
Overall dimension：
SG131 series pressure core adopts dielectric isolation type package form, through the thread directly installed on the system for pressure measurement, can achieve up to 35MPa pressure measurement, and provide absolute pressure, sealed pressure two pressure measurement forms. The SG131 series pressure core has high repeatability, high pressure resistance, high reliability and wide working temperature zone.
●Dielectric isolation package
●High reliability
●Thread mounting
Pressure range | 0~10MPa, up to 35MPa | ||
Measuring medium | Gas or liquid adapted to stainless steel 316L | ||
Type of pressure | Absolute pressure/seal pressure | ||
Nonlinearity | ±0.25%F.S | ||
Overload pressure | 1.5×F.S. | Breaking pressure | 2×F.S. |
Temperature range | -55℃~150℃ | Supply voltage | 2V~10VDC (0.2mA~2mA) |
Repeatability | ±0.1%F.S. | Lag | ±0.1%F.S. |
Overall dimension：
