SG-6
SANGAS

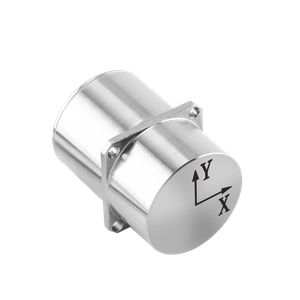

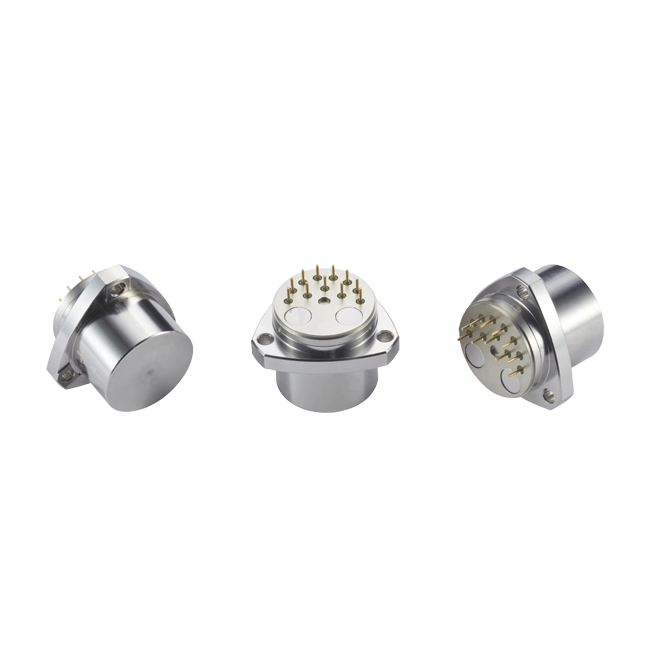

This product is a miniaturized, high temperature and anti-seismic accelerometer. It has excellent repeatability, starting performance, high temperature resistant , anti-seismic performance and high reliability. It can be used for both static and dynamic tests. It is a standard vibration sensor.
✭ Micro structure design
✭ Excellent temperature characteristic (full temperature mean value)
✭ Excellent environmental adaptability, optional temperature output
✭ Zero frequency DC response, current output, strong anti-interference ability
✭ High temperature resistance, anti-seismic, low noise, high resolution
✭ Can be customized according to customer needs
No | Parameters | SG-6-01 | SG-6-02 |
1 | Range | ±20g | ±20g |
2 | Threshold | 30μg | 30μg |
3 | Bias K0(@25℃) | ≤(±30 mg) | ≤(±30 mg) |
4 | Scale factor K1 | 1.8～2.8mA/g | 1.8～2.8 mA/g |
5 | Second-order nonlinearity K2 | ≤±50μg /g2 | ≤±50μg /g2 |
6 | 0g 4 hours short time stability | ≤40 μg | ≤40 μg |
7 | 1g 4 hours short time stability | ≤40 Ppm | ≤40 Ppm |
8 | Bias composite repeatability σK0 (1σ，one month) | ≤250 μg | ≤250 μg |
9 | Scale factor repeatability σK1/K1 （1σ，one month) | ≤250Ppm | ≤250 Ppm |
10 | Nonlinearity coefficient composite Repeatability σK2(1σ，one month) | ≤±50 μg /g2 | ≤±50 μg /g2 |
11 | Bias Temp coefficient | ≤±150 μg /℃ | ≤±150 μg /℃ |
12 | Scale factor Temp coefficient | ≤±200 Ppm /℃ | ≤±200 Ppm /℃ |
13 | Noise(sample resistance 840Ω) | ≤8.4mv | ≤8.4mv |
14 | Natural frequency | 350~800 Hz | 350~800 Hz |
15 | Bandwidth | 800~2500 Hz | 800~2500 Hz |
16 | Vibration | 25g(20-2000Hz) | 25g(20-2000Hz) |
17 | Shock | 1000g,0.5ms,1/2sin | 1000g,0.5ms,1/2sin |
18 | WorkTemp range | -40℃+180℃ | -40+150℃ |
19 | Storage Temp range | -60℃-+200℃ | -60℃-+180℃ |
20 | Power supply | ±12~±18V | ±12~±18V |
21 | Current consumption | ±20mA | ±20mA |
22 | Dimension | Ф18.2X16mm | Ф18.2X16mm |
23 | Weight | 25g | 25g |
