2. Excellent environmental adaptability, optional temperature output
3. Zero frequency DC response, current output, strong anti-interference ability
4. High temperature resistance 180 ℃

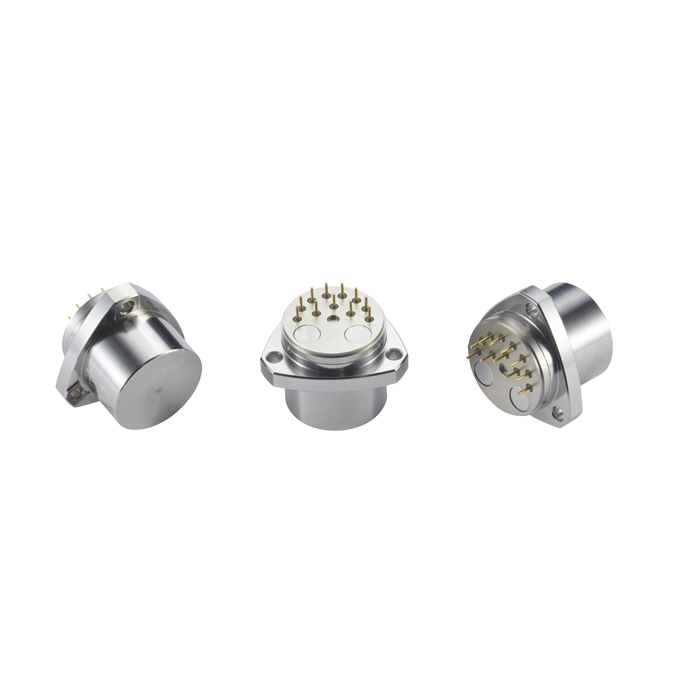

SG-4
SANGAS
This product is a high temperature and anti-seismic accelerometer. It has excellent repeatability, starting performance,high temperature and anti-seismic performance and high reliability. It can be used for both static test and dynamic test. It is a standard vibration sensor.
✭ Low noise, high resolution
✭ Excellent environmental adaptability, optional temperature output
✭ Zero frequency DC response, current output, strong anti-interference ability
✭ High temperature resistance 180 ℃
✭ Can be customized according to customer needs
No | Parameters | SG-4-01 | SG-4-02 | SG-4-03 |
1 | Output range | ±30g | ±30g | ±30g |
2 | Bias K0(@25℃) | ＜10mg | ＜40mg | ＜40mg |
3 | Bias composite repeatability σK0 (1σ，1month) | ＜50μg | ＜250μg | ＜250μg |
4 | Bias Temp coefficient | ＜50μg/℃ | ＜150μg/℃ | ＜150μg/℃ |
5 | Scale factor K1 | 1.1～1.4 mA/g | 1.1～1.4 mA/g | 1.1～1.4 mA/g |
6 | Scale factor repeatability σK1/K1 （1σ，1month） | ＜80 Ppm | ＜250 Ppm | ＜250 Ppm |
7 | Scale factor Temp coefficient（Mean value of whole Tep） | ＜100Ppm/℃ | ＜200Ppm/℃ | ＜200Ppm/℃ |
8 | Installation error | ＜1500μrad | ＜1500μrad | ＜1500μrad |
9 | Vibration | ＜100μg/g2rms (50-500Hz) | ＜100μg/g2rms (50-500Hz) | ＜100μg/g2rms (50-500Hz) |
10 | Noise | ＜3000μg-rms (0-10000Hz) | ＜3000μg-rms (0-10000Hz) | ＜3000μg-rms (0-10000Hz) |
11 | Operating Temp range | -55～96℃ | -55～125℃ | -55～180℃ |
12 | Shock | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
13 | Sinusoidal vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
14 | Resolution | ＜10μg | ＜10μg | ＜10μg |
15 | Bandwidth | ＞300 Hz | ＞300 Hz | ＞300 Hz |
16 | Current consumption | ＜20 mA | ＜20 mA | ＜20 mA |
17 | Consumption @ ±15VDC | ＜480 mW | ＜480 mW | ＜480 mW |
18 | Input voltage | ±12 to ±18V | ±12 to ±18V | ±12 to ±18V |
19 | Weight | ＜65g | ＜65g | ＜65g |
20 | Install diameter | Ф25mm | Ф25mm | Ф25mm |
21 | Height | ＜21.5mm | ＜21.5mm | ＜21.5mm |
22 | Shell material | 300Series stainless steel | 300Series stainless steel | 300Series stainless steel |
