High Temperature and High Pressure Quartz Crystal Pressure Sensor

1.Small dimension：Min Φ16
2.High temperature and pressure (Temp:max 175℃, Pressure:max175Mpa)
3.Accuracy:0.02%FS ,Repeatability：0.02%FS
4.It can be easily applied to the ready-made storage logging tool or wireline logging tool

Availability:



Inquire

Model:
SG-19/16/22
Brand:
SANGAS

Product Description

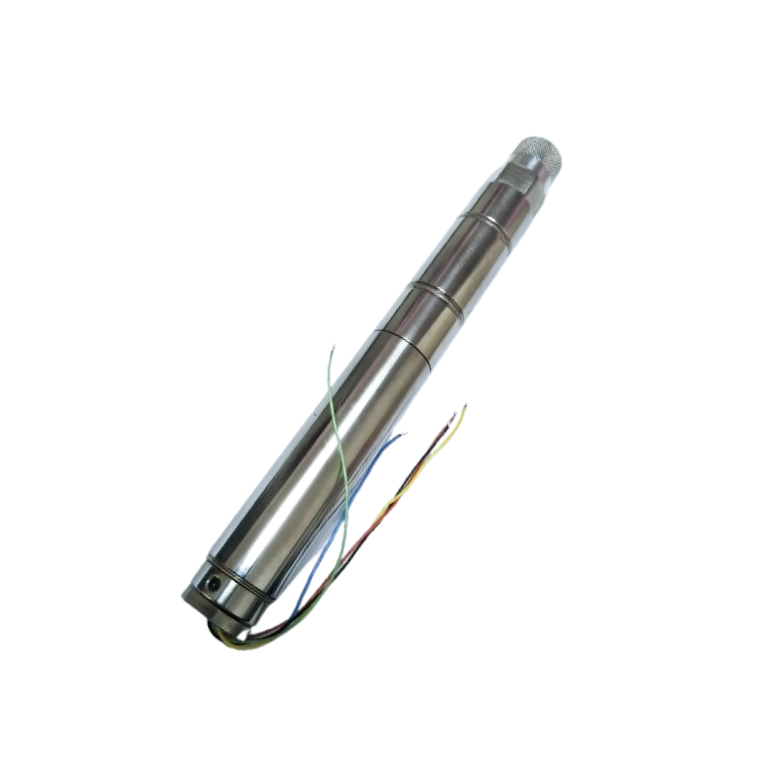

High Temperature and High Pressure Quartz Crystal Pressure Sensor

SG-QUP series high temperature and high pressure quartz pressure sensors have high reliability and high precision.

For decades, the international petroleum industry has been taking this kind of quartz crystal pressure gauge as the industry pressure measurement standard.The pressure sensitive element is a quartz resonator, and the output frequency varies with the applied pressure.

The sensor maintains the excellent characteristics of high repeatability and high stability inherent in single crystal quartz.

High Temperature and High Pressure Quartz Crystal Pressure Sensor Features:

✮ Small dimension

✮ Low loss

✮ High repeatability and stability

✮ It can be easily applied to the ready-made storage logging tool or wireline logging tool

✮ The signal output can meet the requirements of various measuring circuits.

High Temperature and High Pressure Quartz Crystal Pressure Sensor Specifications:

General Parameters	Power supply voltage and current	Operating voltage 3.2-5.0V (Dedicated lithium battery board
	Power supply voltage and current	Operating current <2.0mA, Output voltage 0.5-3V
	Warm up time	1 sec
	Signal output	DC square wave, duty ratio 40％－50％
	Nominal pressure frequency	10KHZ ~100KHZ
	Nominal temperature frequency	10KHZ ~100KHZ
	Electrical interface	Power supply, GND-Black, Pressure-Green, Temp.-violet, REF-Gray
	Gravity and azimuth influence	Negligible
	Well fluid isolator	Inconel alloy welded bellows isolator
Pressure Dynamical Indicators	Sensing element	Thickness-shear quartz resonator.
	Nominal sensitivity	300HZ-400HZ/Mpa, varies by model.
	Reached resolution	0.02Hz (100 Pa)
	Repeatability	0.01%FS
	Scale fitting average residual	0.01%FS, 0.01%FS
	Integral accuracy	0.02%FS，0.01%FS(applicable for calibration transfer
	Response time	<1 sec (99.5％FS)
	Zero drift at normal temp and pressure	0.02 Mpa /year
Temperature Dynamical Indicators	Sensing element	Quartz resonator
	The resolution can be achieved	0.01 ℃
	Repeatability	0.1 ℃
	Accuracy	1 ℃
Seismic performance	Mechanical Shock	500g. 2ms half-sine
Seismic performance	Vibration	Survives random vibration per NAVMAT P-9492.33.2.1

Model	Applications	Dimension(O.D)
SG-26QUP	It is convenient to construct multi parameter production logging tool and repetitive formation tester with diameter of Φ 38	Φ25.4
SG-22QUP	It is convenient to construct multi parameter production logging tool with diameter of Φ 32 and Φ 38, well test storage pressure gauge, repetitive formation tester and testing while drilling	Φ22
SG-19QUP	It is convenient to construct multi parameter production logging tool with diameter of Φ 25.4 and Φ 32, well test storage pressure gauge, repetitive formation tester and testing while drilling	Φ19
SG-16QUP	The multi parameter production logging tool with diameter of Φ 22, Φ 25.4 and Φ32 can be constructed	Φ16
