SG3Z32B
SANGAS

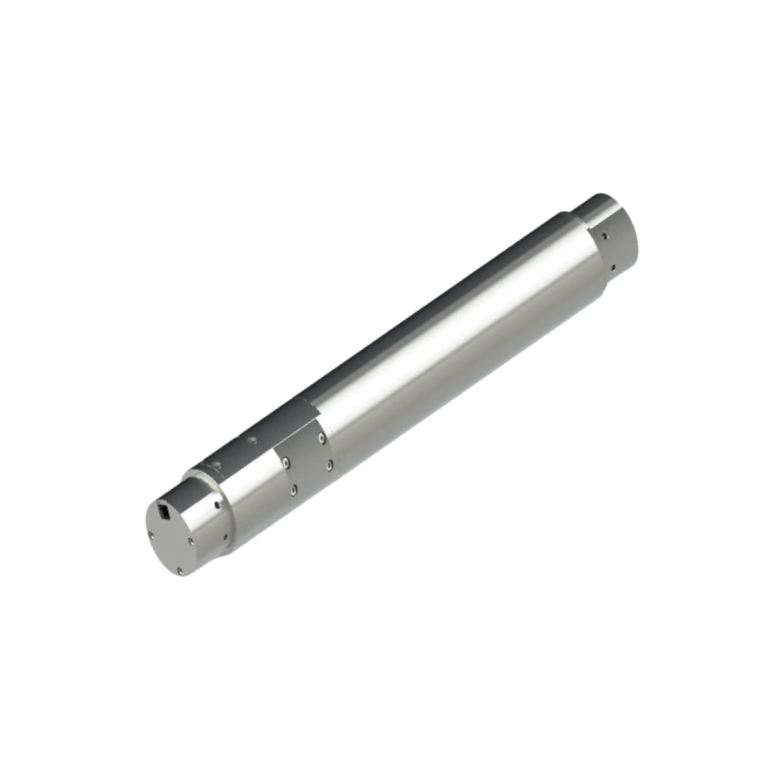

This triaxial fiber optic gyroscope is specially developed for downhole logging systems. It has a small volume, light weight, very fast response speed, high sensitivity, and is not affected by electromagnetic interference. It is solid and reliable, and has a long service life.
٭ Fast response, high precision and sensitivity
٭ Small volume and light weight
٭ Solid and reliable
٭ Unaffected by electromagnetic three-axis angular velocity
Parameter | Unit | Index |
Measurement range | ±300 | (º/s) |
Bias stability (Constant Temp) | ≤0.2 | (º/h) |
Bias repeatability(Constant Temp) | ≤0.2 | (º/h) |
Bias stability (Full Temp Constant Temp) | ≤1 | (º/h) |
Minimum speed resolution | ≤0.4 | (º/h) |
Bias repeatability ( room temperature) | ≤0.4 | (º/h) |
Bias changes before and after vibration | 0.5 | (º/h) |
Scale factor nonlinearity (1σ) | ≤50 | ppm |
Scale factor asymmetry 1σ) | ≤50 | ppm |
Scale factor repeatability (1σ) | ≤50 | ppm |
Random walk coefficient | ≤0.03 | (º/) |
Bandwidth | ≥100 | Hz |
Start time | 3 | s |
Preheating time | Zero preheating time, achieving accuracy requirements after startup time | s |
Output method | RS422 | / |
Power supply | (±5±0.25)V DC | / |
Electrical interface | DB9 female head | / |
Power Consumption | ≤6Steady state power consumption) | W |
Overall dimension | Φ32*450±2 | mm |
Weight | ≤1.1 | kg |
Installation holes | 8×Φ3.6 | / |
Vibration | Hz | |
Work Temp | 0℃~+70℃ | ℃ |
Storage Temp | -55℃~+85℃ | ℃ |
