Open loop Fiber Optic Gyroscope

1.Light weight and small size
2.Fastest 0.02 s start-up
3.Low power consumption
4.High reliability and high impact resistance

Availability:



Inquire

Model:
SG-1
Brand:
SANGAS

Product Description

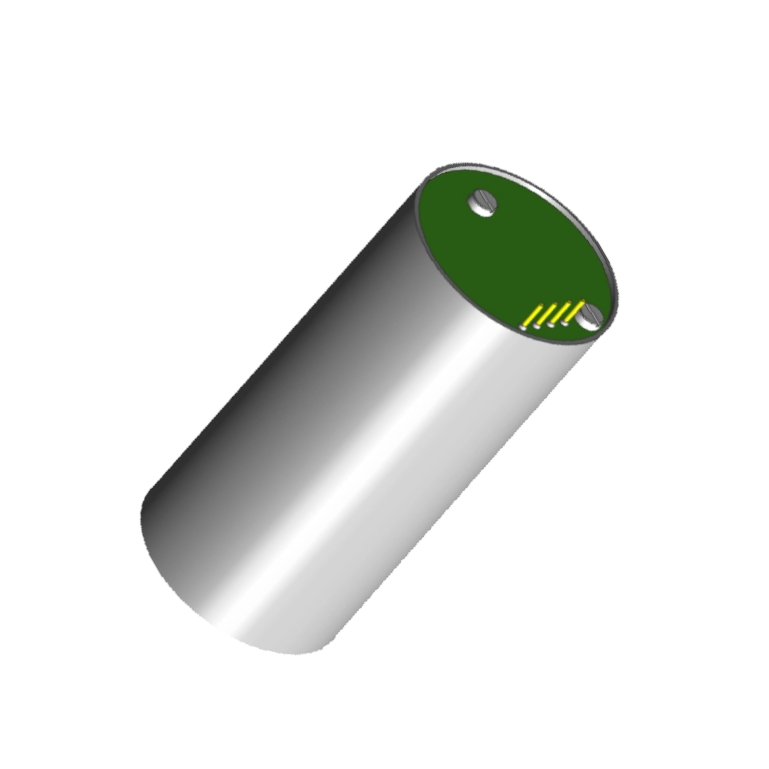

Open loop Fiber Optic Gyroscope

SG-1 open-loop fiber optic gyroscope is used to measure the rotation angle rate of its mounting carrier relative to the inertial space.

It provides the rotating speed of the product along the sensitive axis of the carrier, which is mainly for the low precision demand of the flight control and servo control field.

Open loop Fiber Optic Gyroscope Features:

Most sensitive and accurate in its size;

Very low 0.8 W power

Light weight and small size

Fastest 0.02 s start-up

Widest 1kHz bandwidth

Low power consumption

High reliability and high impact resistance

Open loop Fiber Optic Gyroscope Specifications:

Specifications	Performance	Unit
Rate Range	600	deg/s
Scale Factor(SF)	3.2	mV/deg/s
Frequency range	0... 1	kHz
Angle random walk	0.03	deg / h
Bias stability, RMS	10	deg / h
SF stability, RMS	0.1	%
Readiness time	0. 02	s
Temperature operating	-45 ... +70	°C
Endurance	-55... +85	°C
Vibration(operating), RMS	13	g
Shocks(endurance)	100 , 6	g,ms
MTBF	50000	hours (20 С, predicted)
Lifetime(predicted)	15	year
Dissipation	1	W
Weight	35	gram
Volume	0.025	litre
Housing protection	Power coating	---
Tolerances	Per ISO 2768-m	----
