1.Accurate calibration, full temperature calibration
2.Supports RTK, dual antenna orientation, and external device expansion
3.Anti impact, anti vibration, high reliability
4.Excellent performance and high cost-effective

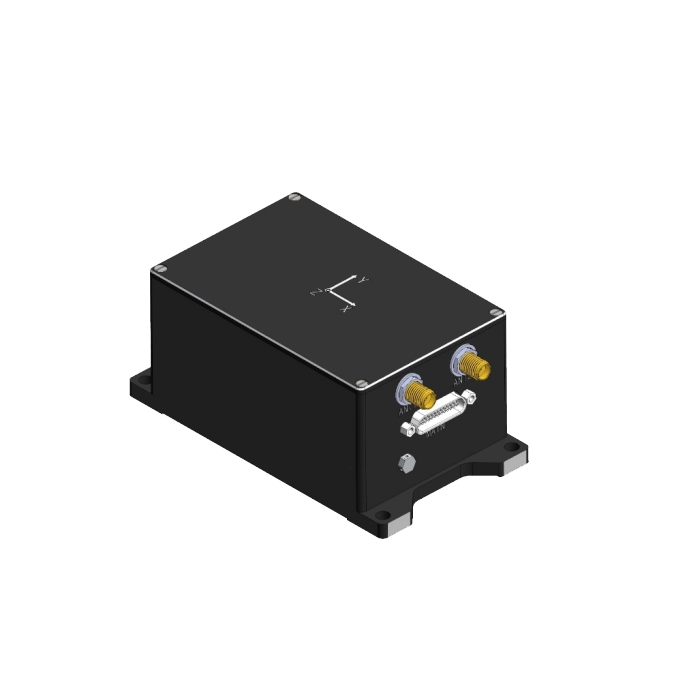

SG-AR300
SANGAS
This system is a miniaturized and highly cost-effective MEMS integrated navigation system. It integrates high-performance MEMS gyroscopes, accelerometers, satellite receivers, magnetic sensors, barometric pressure sensors, etc. internally. The sensors have undergone precise full-temperature calibration at the factory. This product features high precision, small size, light weight, stability and reliability, and is capable of working stably in wide-temperature and high-vibration environments.
Accurate calibration, full temperature calibration
Supports RTK, dual antenna orientation, and external device expansion
Anti impact, anti vibration, high reliability
Excellent performance and high cost-effective
Index | Parameter | ||
Performance parameter | Attitude accuracy | 0.1° | |
Heading accuracy | 0.1°（2m） | ||
Level | Elevation | ||
Positioning accuracy (single point) | 1.5m | 2.5m | |
Positioning accuracy （RTK） | 1cm+1ppm | 1.5cm+1ppm | |
Gyroscope parameter | Range | ±300°/s | |
Bias stability | ＜1°/h（Allan，Full temp） | ||
Random walk | ＜0.08°/√hr | ||
Nonlinearity | ＜200ppm | ||
Accelerometer parameter | Range | ±6g/±20g(configurable) | |
Bias stability | ＜15μg（Full temp） | ||
Random walk | ＜0.03m/s/√hr | ||
Nonlinearity | ＜200ppm | ||
System parameter | Dimension | 108*60*48mm | |
supply voltage | 9~36V | ||
Operate temp | -40~+60℃ | ||
interface | RS422/RS232/CAN/Ethernet | ||
