Hydraulic Thread ports piston pump

1.Greatly enhanced inlet cross-sectional area design,reach 10000rpm easily
2.Large inlet cross-sectional area, suitable for high viscosity condition like low temperature
3.7 or 11 piston design, low pulsation and noise
4.Small and weight less, high power density
Availability:
  • SG-P2

  • SANGAS

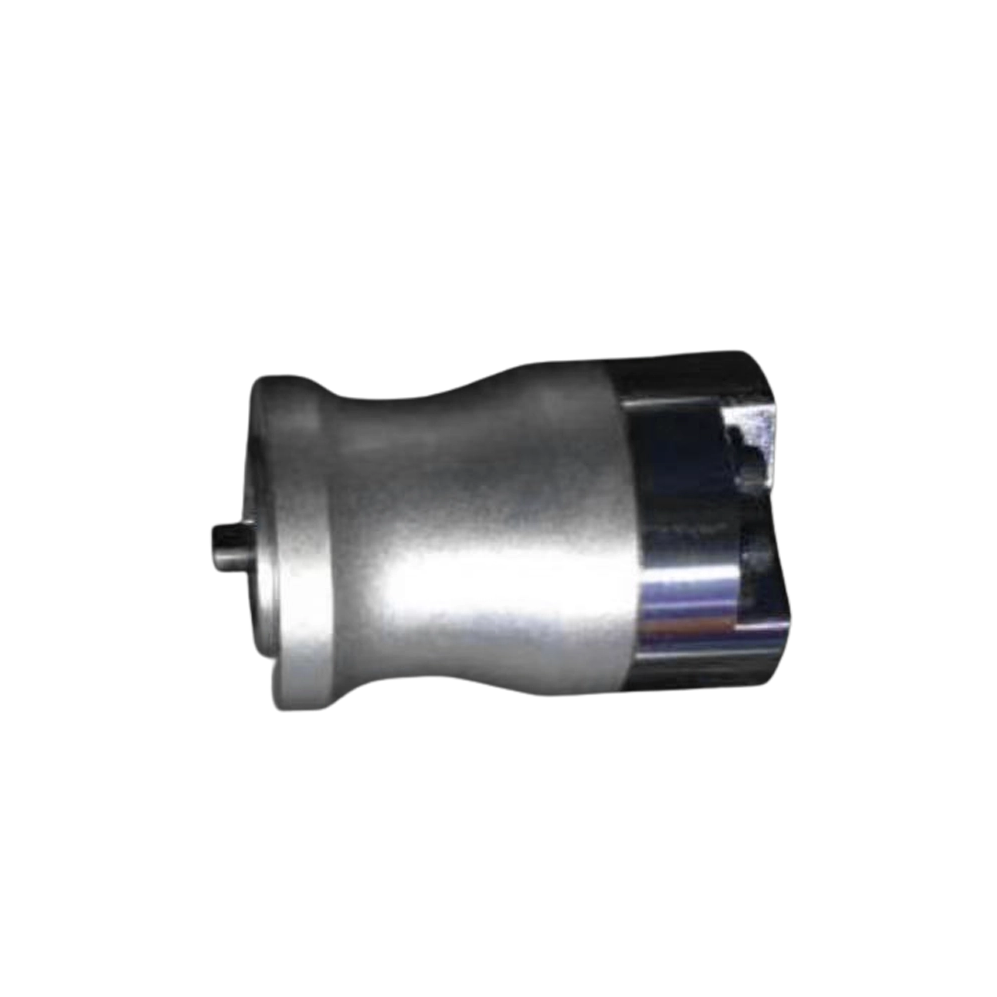

Hydraulic Thread ports piston pump

Based on the plug-in piston pump, the threaded oil port piston pump reduces the usage ability of rotate speed , and adopts the traditional oil port threaded connection.This is a better choice for customers who do not want to have a valve block, do not need high-speed operation, or want the cost to be as low as possible.

Hydraulic Thread ports piston pump features:

Cartridge and shaft side ports design,eliminate hose and adaptor for compact system
Greatly enhanced inlet cross-sectional area design,reach 10000rpm easily
Large inlet cross-sectional area, suitable for high viscosity condition like low temperature

7 or 11 piston design, low pulsation and noise

Small and weight less, high power density
Bi-directional design for EHA

In production, short lead time

Hydraulic Thread ports piston pump specifications:

Displacement(cc)

0.03,0.06,0.09 , 0.13

0.25,0.5

1,1.5/1.7

3/5/7

Cartridge(Bi-di…)

Shaft side port(Bi-di…)








Weight(kg)

0.11

0.23

0.66

1.73

Peak pressure(Mpa)

35

35

35

35

35

35

35

35

35

Rated pressure(Mpa)

30

30

30

30

30

30

30

30

30

Max speed for standard pump (rpm)

5000

5000

5000

4000

4000

4000

3500

3000

2500

Max. speed for high speed version (RPM)

15000

15000

10000

12000

10000

12000

10000

10000/6000

5000

High speed need charge pressure,1 bar is basically enough for most conditions. Higher speed achievable, pls contact us

Continuous min speed (rpm)

300

300

300

300

300

300

300

300


Keeping 21Mpa speed(rpm)

400

200

100

100

50

50

50

50


This speed is for reference for EHA usage

Oil temperature (℃)

-40~+100 ℃

Recommended oil

DTE22~26

Contamination

ISO4406 20/17/14(NAS8)

ISO4406 21/18/15(NAS 9)

Case pressure

Depends on shaft seal opti
