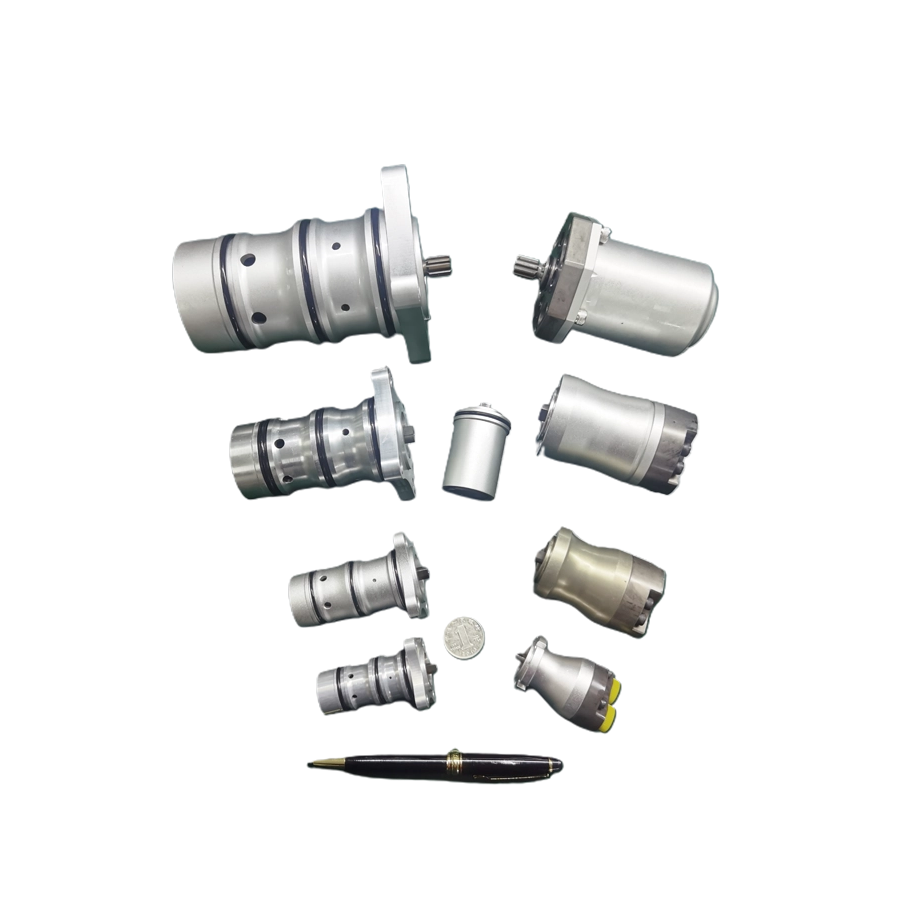

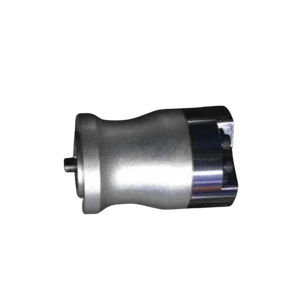

Plug in and shaft end oil port piston pump is a product specially designed for high power density and high integration.
It adopts patented design to increase the speed of the pump as much as possible without pressurization at the inlet.At the same time, the piston pump can be inserted into the valve block like a cartridge valve, or installed on the valve block like a superimposed valve block, eliminate fittings of inlet，outlet and case drain ports.This brings great convenience to highly integrated micro hydraulic systems such as EHA.
7 or 11 piston design, low pulsation and noise
In production, short lead time
Displacement(cc) | 0.03，0.06，0.09 , 0.13 | 0.25，0.5 | 1，1.5/1.7 | 3/5/7 | |||||
Cartridge（Bi-di…） | ● | ● | ● | ● | ● | ● | ● | ● | ● |
Shaft side port（Bi-di…） | ● | ● | |||||||
Weight(kg) | 0.11 | 0.23 | 0.66 | 1.73 | |||||
Peak pressure(Mpa) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
Rated pressure(Mpa) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Max speed for standard pump (rpm) | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 |
Max. speed for high speed version (RPM) | 15000 | 15000 | 10000 | 12000 | 10000 | 12000 | 10000 | 10000/6000 | 5000 |
High speed need charge pressure,1 bar is basically enough for most conditions. Higher speed achievable, pls contact us | |||||||||
Continuous min speed (rpm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
Keeping 21Mpa speed(rpm) | 400 | 200 | 100 | 100 | 50 | 50 | 50 | 50 | |
This speed is for reference for EHA usage | |||||||||
Oil temperature (℃) | -40~+100 ℃ | ||||||||
Recommended oil | DTE22~26 | ||||||||
Contamination | ISO4406 20/17/14(NAS8) | ISO4406 21/18/15(NAS 9) | |||||||
Case pressure | Depends on shaft seal option | ||||||||
